Ntw Diamond Thin Wall Wireline Drill Rods Alloy Steel DCDMA N Size Hole
Ntw Diamond Thin Wall Wireline Drill Rods Alloy Steel DCDMA N Size Hole
Specifications
Brand Name :
PEERCHEER
Model Number :
NTW
Place of Origin :
WuXi
Payment Terms :
T/T
Name :
NTW DRILL ROD
Model :
NTW
industry :
Drilling
OUTER DIAMETER :
73.0mm
INNER DIAMETER :
64.2mm
Material :
Alloy Steel
Price :
Negotiable
Certification :
ISO9001
Description

NTW DIAMOND CORING THIN WALL WIRELINE DRILL ROD

Wireline drill rods are an essential tool for drilling in the mining and oil and gas industries. They are used to extract core samples from the earth's surface and provide valuable information about the geological formations below. Wireline drill rods are made from high-quality steel and are designed to withstand the harsh conditions of drilling. They come in various lengths and diameters to suit different drilling requirements.

Ntw Diamond Thin Wall Wireline Drill Rods Alloy Steel DCDMA N Size Hole

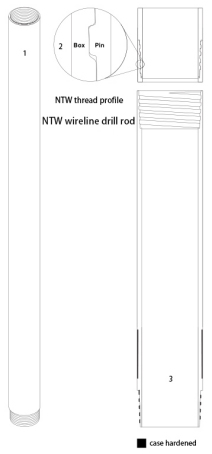

NTW drill rod configuration:

1-NTW drill rod overview

2-NTW drill rod box and pin thread profile

3-NTW drill rod case hardened illustration

NOTE:

(1)1.5 m/5 ft and 3 m/10 ft NTW drill rods are available.

NTW Rod Nonimal Parameter Metric Imperial
NTW Drill Rod OD 73.0 mm 2.875 in
NTW Drill Rod ID 64.2 mm 2.525 in
NTW Drill Rod Weight 22.3 kg/m3 49.8 lb/10 ft
NTW Drill Rod Thread Pitch 6.35 mm 4 in
NTW Drill Rod Pin Thread Length 44.45 mm 1.75 in

NTW Drill Rods Package Specifications

3.0 m/10 ft Rod Bundle (40 Rods)

Dimensions (L x W x H) 3100 x 380 x 430 mm

Volume 0.51 m3

Gross Weight 616 kg

1.5 m/5 ft Rod Bundle (40 Rods)

Dimensions (L x W x H) 1600 x 380 x 430 mm

Volume 0.26 m3

Gross Weight 318 kg

Container Shipments:

20 ft container load of 3.0 m/10 ft rods holds 25 bundles (around1000 rods)

40 ft container load of 3.0 m/10 ft rods holds 33 bundles (around1300 rods)

Our Services:

Ø Provide the technical design and solutions;

Ø Designing and manufacturing of non-standard equipment;

Ø Professional technical training and guidance on site according to the contract;

Ø Supply accessories at any time;

Ø Tele-technical consulting and services;

Ø Other special technical service according to client's requirements.

We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
