Specifications
Place of Origin :
CHINA
Brand Name :
SANBI
Certification :
CE,ISO,SGS.TUV
Model Number :
BT-300
MOQ :
1SET
Packaging Details :
Standard export package (wooden pallet/ box/nude packing)
Delivery Time :
20-30 workingdays
Payment Terms :
T/T. L/C. WESTER UNION etc.
Supply Ability :
20SETS PER MONTH
Description

High Speed Automatic Center Sealing Machine

Quick Detail:

a. Stable and heavy duty frame for high speed operation of 300n/min.

b. Adjustable forming plate creates efficient operation.

c. Auto solvent feeding control.

d. Auto tension control for unwind / rewind unit to maintain the optimun tension.

e. Accurate product width.

f. Cantilevered rewind / unwind shaft for fast roll changeover.

g. PLC with color touch screen control system.

h. Rewind oscillation control to produce high quality rolls.

Description:

The Machine is mainly used for middle saling and sticking of trade mark of PVC& PET, The equipment has high performance of control system and mechanical structure with reasonable design. The operation of the machine is stable. the work efficiency is high. it is an essential ideal equipment for middle sealing and sticking of marks

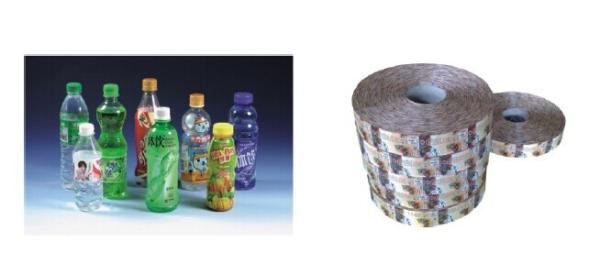

Applications:

- Water bottle label .

- PVC material

- PET material

Specifications :

Model

300mm

Width of Unwinding

620mm

Diameter of Unwinding

600mm

Diameter of Rewinding

700mm

Max speed of Working

300m/min

Max speed of Machine

330m/min

Voltage of Whole Machine

380V/50HZ

Dimension of Whole Machine

3180x2000x1550mm

Main configuration:

PLC

INOVANCE CHINA

Touch screen

MCGS CHINA

Main inverter

INOVANCE CHINA

Rewinding inverter

INOVANCE CHINA

PG Card

INOVANCE CHINA

EPC

E+L GERMAN

Glue pump

CHUANRUI CHINA

Unwinding Magnetic power

WEIZHENG TAIWAN

Rewinding vibrating servo motor

INOVANCE CHINA

Main converter motor

DANMA TAIWAN

Rewinding motor 1 piece

DANMA TAIWAN

Encoder

OMRON JAPAN

Competitive Advantage:

a. The twenty seven years experence to manufacture this machine

b. 30years professional engineers service in many countries,

c. Machines with quality guarantee for one year, life-long maintenance.

d. Created honors : The national igh tech-Enterprises, The national torch planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

e. Professional development group continuously improves and upgrades new products and new technologies .

f. Undertake various non-standard machinery, solve the customers' special requirements.

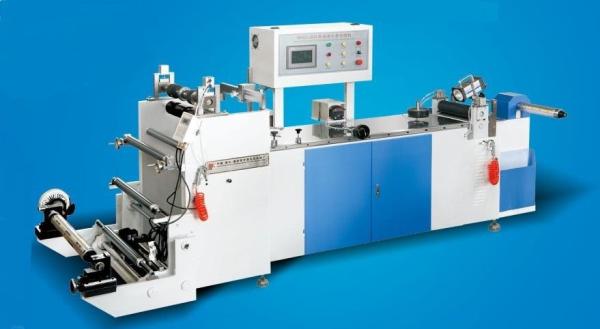

BT-300 AUTOMATIC CENTER SEALING MACHINE
