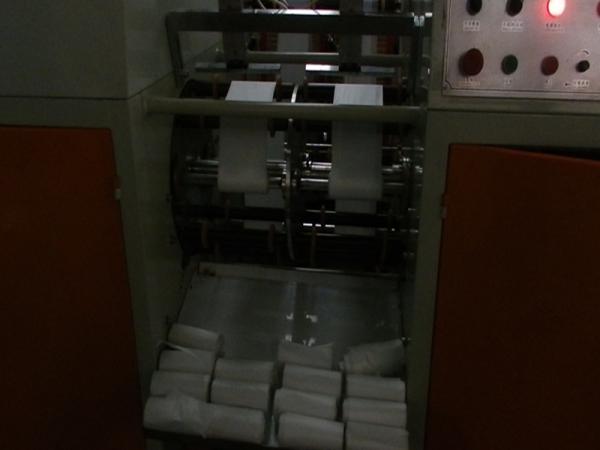

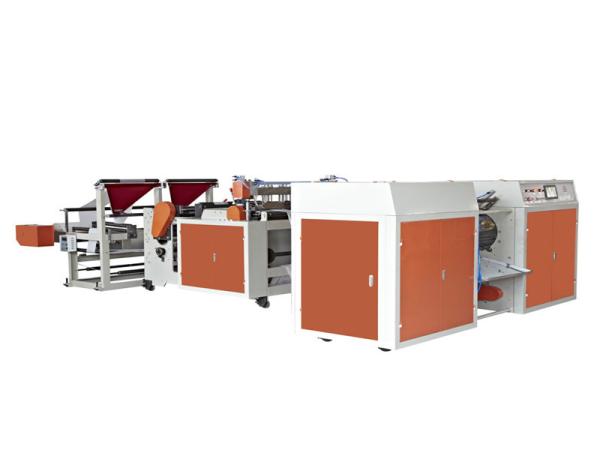

Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Automatic Plastic Coreless Garbage Bag Making Machine Double Lines
Specifications
Brand Name :
SANBI
Model Number :
BT300*2
Certification :
CE ISO9001
Place of Origin :
ZHEJIANG OF CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
around 30 work days
Packaging Details :
standard wooden package
Product Application :
Coreless Garbage Bag
Control System :
Full Automatic
Stage :
Double lines
Mchine type :
Sealing Machine
Material :
HDPE LDPE
Description

bag making machine , plastic bag making machine , garbage bag production , coreless garbage bag

Automatic Plastic Coreless Garbage Bag Making Machine Double Lines

1.Performance and Characteristics

The machine is adopts coreless rewinder. automatic roller changer, synchronous foling & feeding , double roller synchronous feeding not strain . Control by Panasonic motor inverter , high speed & precise , it can produce two lines film at one time . High efficiency and save.

Automatic Plastic Coreless Garbage Bag Making Machine Double Lines

2. Main Technical Parameter

Material type

LLDPE / LDPE / HDPE

Production speed

70-160pcs*2

After fold bag width

100-260mm

Loading film width

200-550mm

Bag length

200-1000mm

Film thickness

0.008-0.02mm

Total power

6kw

Overall dimension

Overall dimension

Main motor

2.2kw

Rewinder changer

0.75kw*2

3. Main Parts

1

1.5kw Panasonic servo motor
2

inverter.Control system
3

feeding part adopts auotomatic EPC control.dot cutter asopts micro-computer contril
4

rewinder part adopts PLC program control system
5

Turning part:main part 1.1kw AC frequency control
6

feeding EPC motor 2 sets
7

feeding DC motor, rewinder 0.75kw AC frequency control, roll changer DC motor
8

roll pulling out by magnet valve pneumatic control

Automatic Plastic Coreless Garbage Bag Making Machine Double Lines

4.Competitive Advantage:


1. The twenty seven years experence to manufacture this machine

2. More 30 years professional engineers service in many countries,

3. Machines with quality guarantee for one year, life-long maintenance.

4.Created honors: The national igh tech-enterprises,

The national torch-planning project commitments to corporate

Famouse trademarks in Wenzhou

Ten pcs provincial new products etc

5.Professional development group continuously improves and upgrades new products and new technologies.

6.Undertake various non-standard machinery, solve the customers' special requirements.

7. High speed,hige stable full automatic completely process lines
