4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods
Specifications
Brand Name :
SANBI
Model Number :
YT
Certification :
CE, ISO9001
Place of Origin :
ZHEJIANG, CHINA
MOQ :
one set
Price :
usd 11000-14000 one set
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
30 sets one month
Delivery Time :
within 30days
Packaging Details :
wooden package
Material :
Plastic film, paper, foil
Speed :
50m/min
Description

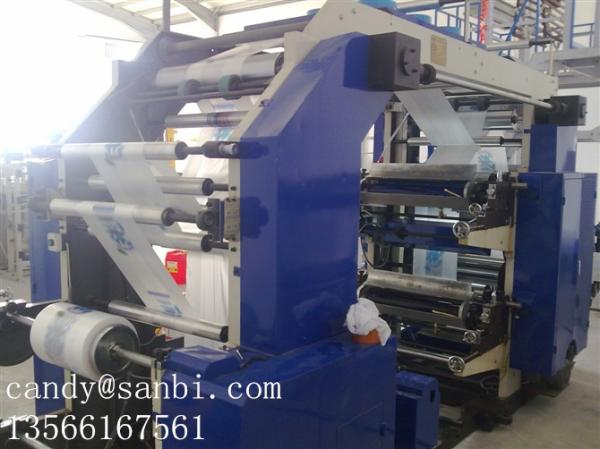

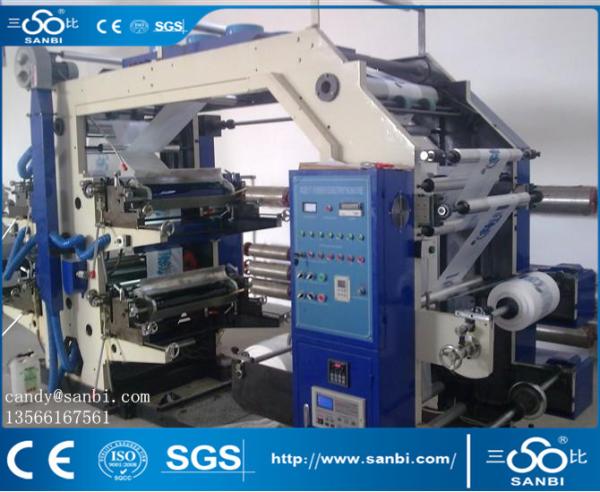

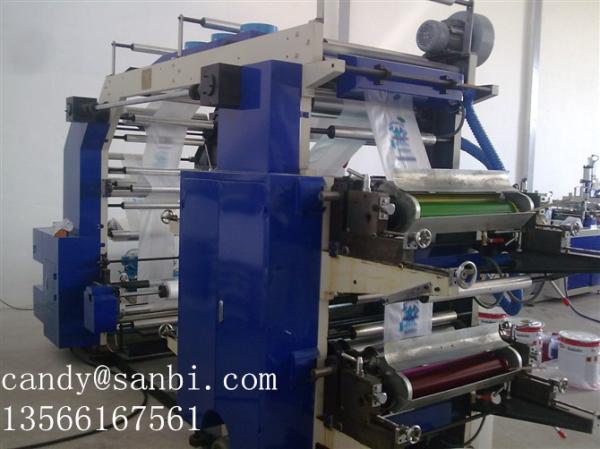

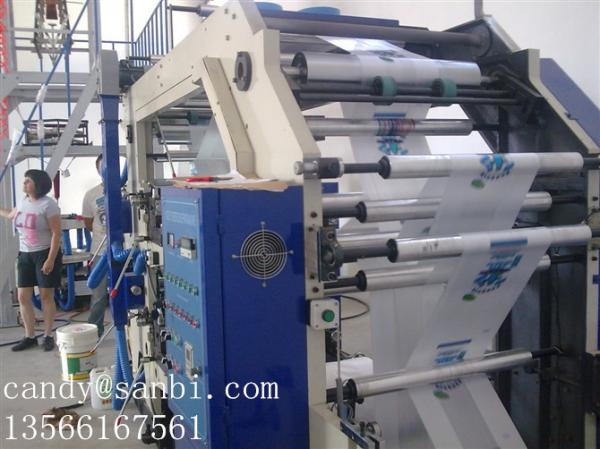

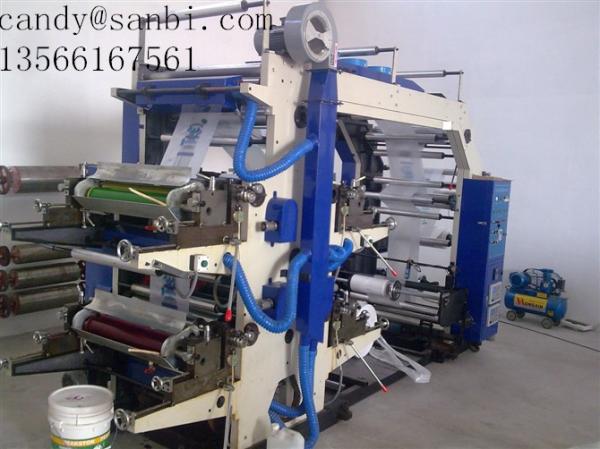

YT-4800 Four-Color Flexographic Printing Machine

4 Color Multicolor Printing Machine To Printed Plastic Film Paper Foil Opp Goods

Product Description
Application: Introduce sensitization resin as flexible printing plate, suitable for printing
Such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
Supermarket handbag, vest bag and clothes bag, etc.

Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Parameter:

Model

YT-4800

Max. Width of Printing Material(mm)

800

Max. Printing Width(mm)

760

Length Range of Printed Product(mm)

191-914

Max. Diameter of Roll Material(mm)

Φ450

Printing Speed(m/min)

5～50

Thickness of plate(Including Two-sides Glue Paper)(mm)

2.38

Total Power

12.5

Weight(kg)

3500

Overall Dimension(mm)

4200*1800*2400

Optional Device:

1. Unwind and Rewind use automatic tension control: 1000USD*2=2000USD

2. Unwind with automatic deviation correction system(EPC):1100USD

3. Cylinder can stand up with plate: 200USD*4color=800USD

4. Our machine had equipped 40cm roller for you. If you need another roller for printing, need 2.5 USD/CM.

SPARE PARTS

01

inner hexagonal spanner

1set

02

Cross screwdriver

1pc

03

a-liner screwdriver

1pc

04

Screws

15pcs

05

Scissors

1pc

16

operation instruction book

1pc
