500 - 1000kg / H Multi-Purpose Sawdust Wood Pellets Machine Biomass / Wood Pellet Production Line

Product Description:

The solid-state forming of the pellet machine is to prevent the material from bouncing back to its original shape, so that it can maintain a certain shape and strength. The compression process does not need to add any binder, which belongs to the physical molding of fiber materials and is made of biomass such as straw and wood chips. From the perspective of composition, it is mainly composed of cellulose, hemicellulose, lignin, resin, wax and other components. Among the various components that make up biomass, lignin is generally considered to be the best internal binder inherent in organisms.

At normal temperature, the main part of lignin is insoluble in any organic solvent, but lignin is amorphous, has no melting point but has a softening point. When the temperature reaches about 70°C to 110°C, it softens and the adhesive force starts to increase. At this time, a certain external pressure can be applied to make it tightly combined with cellulose, hemicellulose, etc., and bond with adjacent biomass particles at the same time. connected together. After the briquette fuel is cooled, the strength increases, and the combustion performance of the rod-shaped, block-shaped, and granular biomass solid briquette fuel is similar to that of wood.

Technical Parameters:

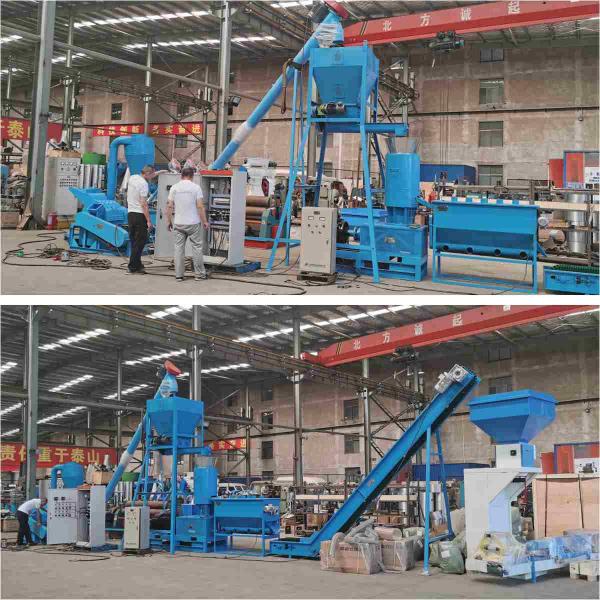

Process flow of wood pellets production line

1. Raw material crushing:

Those with a diameter of less than 15cm can be directly crushed into sawdust with a cutterhead grinder, and those with a diameter of more than 20cm need to be broken into small pieces by a chipper, and then crushed by a sawdust grinder

2. Drying:

Small output can be dried by airflow dryer, and large output is recommended to use tumble dryer, which can reduce the moisture content of raw materials to about 15%, or reduce to your desired effect

3. Granulation:

Due to the advantages of low investment and low energy consumption, the equipment is widely used in the mechanism charcoal industry and biomass energy industry and other users who need to produce various fuels.

4. Packaging:

The cooled granules are transported to the storage bin of the automatic packaging machine through the belt conveyor for packaging, which can support seam packaging and heat-sealing packaging

The whole process is simple and easy to operate, fully automated to save manpower

Features:

• Product Name: Biomass/Wood Pellet Production Line

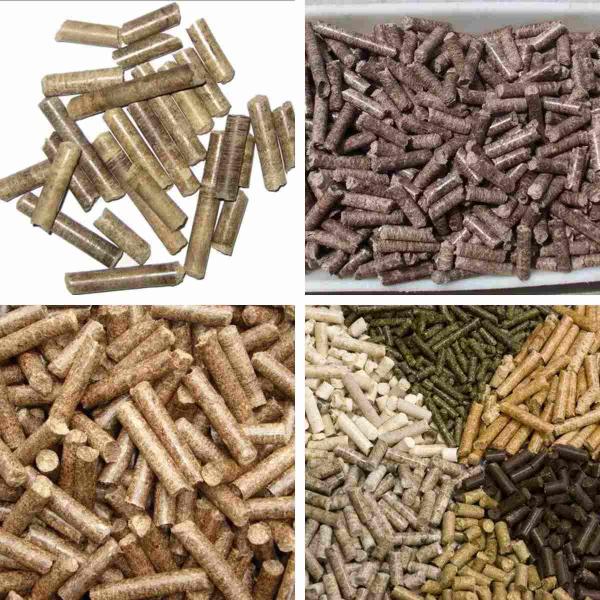

• Final Pellet Diameter: 6-12mm

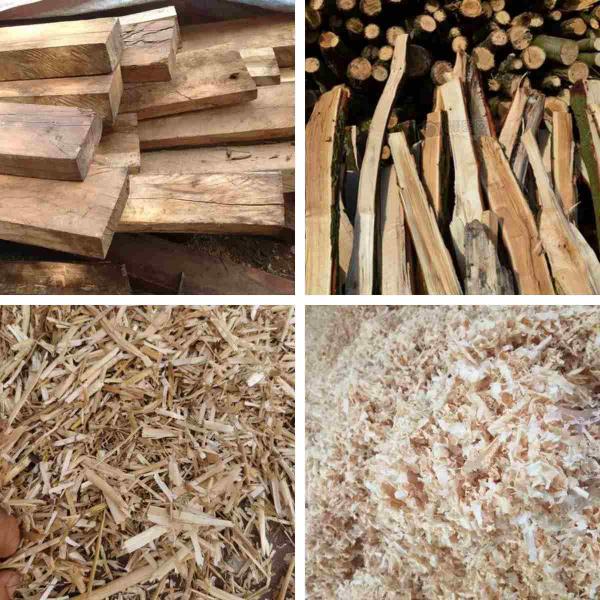

• Raw Material: Wood Chips, Sawdust, Rice Husk, Etc.
• Final Pellet Moisture: 8-12%
• Final Pellet Calorific Value: >4000Kcal/kg
• Main Motor Power: 90-160kw

Customization:

We offer the customized biomass/wood pellet production line with the brand name of wood pellet machine line and model number EWP-420. The biomass/wood pellet production line is CE/BV certified and the minimum order quantity is 1. The price can be customized and the packaging details is 20ft or 40ft container. The delivery time is 20-30 days and the payment terms are T/T/western union ect. The final pellet length is 10-30mm and the pelletizing system is Ring Die / Flat Die Pellet Mill. The raw material used is Wood Chips, Sawdust, Rice Husk, Etc. The cooling system is Counter Flow Cooler and the final pellet diameter is 6-12mm.

We specialized in biomass pelletizing line, biomass pelletizing line and biomass pelletizing line. We are a leading supplier and manufacturer of high quality wood pellet production line.
