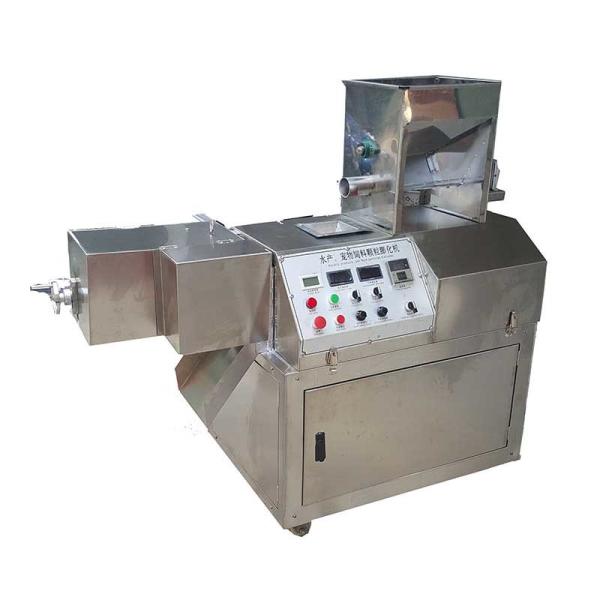

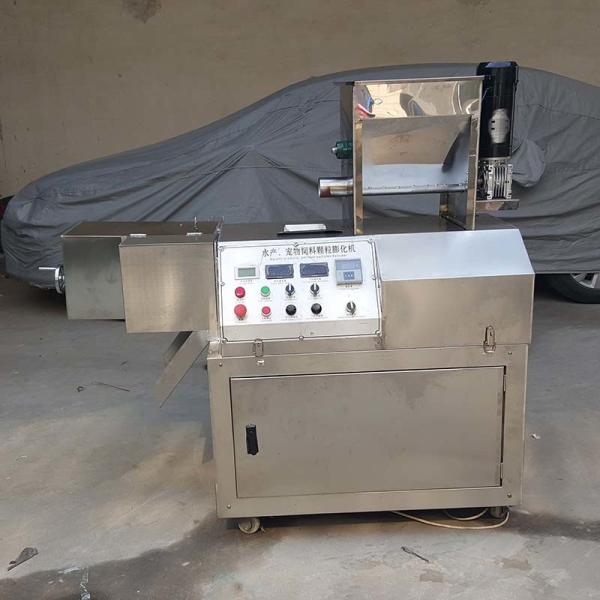

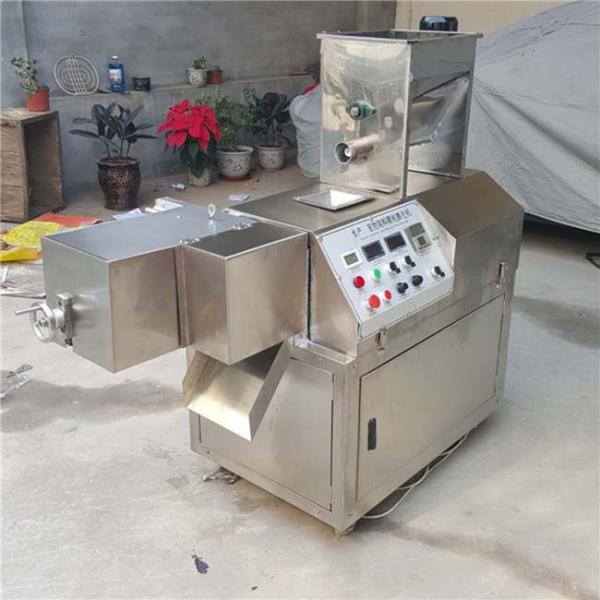

Cat Dog Pet Feed Pellet Machine Stainless Steel Screw Feed Extruder For Feed Floting Ornamental Fish Feed Pellet Making

Product Description:

• Feed puffing machine is a kind of puffing machine, mainly used for food puffing, livestock and poultry feed or puffing a single raw material.
• working principle
• Screw: It is the main part of the extruder. The parameters indicating the screw structure include diameter, pitch, root diameter, helix angle and blade cross-section structure. The aspect ratio of the extrusion parts and the gap between the screw and the inner wall of the puffing cavity also have a great influence on the performance of the puffing machine.
• Discharge die: It is the final pass for the product to pass through the extruder. It has a great influence on the shape, texture, density, appearance, characteristics of the product and the production capacity of the extruder. The bearing box part is mainly composed of a bearing box body, a main shaft, a bearing, a shaft sleeve, left and right end covers, a sealing ring, and a round nut. The oil filtration cooling system is mainly composed of oil pump, cooler, oil filter, valves, connecting pipe fittings and so on.

Features:

• 1. The main engine adopts frequency converter to realize stepless speed regulation. The built-in screw and screw sleeve of the model are lengthened. The material rotary cutting time is long, the temperature can be adjusted, and the output torque can be adjusted to make the material have a high degree of expansion and a smooth surface.
  2. Adjust different torques of the machine and different materials to make different feeds. This model can be used to make: suspended aquatic feed pellets, sinking fish, shrimp and crab feed pellets, pet feed pellets, fishing feed pellets, etc.
  3. The international advanced granulation structure adopts the form of soft knife bonding to realize stepless speed change, and can cut the output material into desired length products at will, and it is not easy to produce burrs.
  4. The design is novel, unique, simple in structure, easy to assemble and disassemble, and easy to operate.
  5. The screw sleeve and screw are made of special wear-resistant and high-temperature-resistant alloy steel materials and are heat-treated, which has the advantages of wear resistance and long life.

Technical Parameters:

Applications:

• The feed extruder is mainly used for the production of pelleted feed for special breeding such as puffed fish, shrimp, pet food, etc.

Packing and Shipping:

The Floating Fish Feed Production Line is packed into wooden cases and shipped by sea. The shipment will be inspected before loading and unloading to ensure that the products are in good condition.

Details:
