High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
Specifications
Brand Name :
Zhongdebao
Model Number :
EWPL-1TPH
Certification :
CE BV
Place of Origin :
China
MOQ :
1
Price :
price negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per week
Delivery Time :
5-8 working days
Packaging Details :
directly loaded in the container or packaged by wooden case
Application :
cattle sheep grass animal feed pellet line machines
After-sales service provided :
Engineers available to service machinery overseas, Field installation, commissioning and training, Overseas service center available, Video technical support
Voltage :
380V/50HZ, 380v, 50hz, 380V/50HZ/Three Phase, 220V/50HZ/Single Phase or Change As Rquired
Power(w) :
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Warranty :
1 Year, one year, 12 MONTHS
Weight :
500kg, 6000kg, 1200kg, 2-10TON, 2000
Dimension(l*w*h) :
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, As per capacity
Condition :
New
Capacity :
100kg/h 200kg/h 500kg/h 1000kg/h to 20tons /h
Material :
Carbon steel Alloy steel
Motor :
Simens, Chinese motor or Simense
Product name :
biomass wood pellet production line
Color :
blue white green any color can be customized
Type :
biomass wood pellet producing line
Raw material :
wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavings, bagasse, palm husks, twigs, branches, bark, leaves, wood scraps; Large furniture factory, wood factory, wood chips produced by various kinds of wood in the
Main motor :
22kw 30kw 37kw 55kw
Output :
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Year :
2023
Description

1-20TPH chicken poultry livestock feed pellet production line

Production application :

Type : Animal feed pellet production line

Capacity : 1-20TPH

Pellet size : 1.5-12mm ( 1.5-6mm generally for animal feed )

Application : Can be used for poultry , livestock , ruminants and aquatic pellet feed production .

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

HKJ Series Ring die pellet machine models :
Model
Main Power

Feeder Power
Conditioner Power
Dia.of Ring Die
Pellet Size
Capacity
HKJ-250
22KW
0.55KW
1.5KW
250mm
φ1.5-12.0mm
1-2T/H
HKJ-320
37KW
1.5KW
2.2KW
320mm
φ1.5-12.0mm
3-5T/H
HKJ-350
55KW
1.5KW
3.0KW
350mm
φ1.5-12.0mm
5-8T/H
HKJ-420
110KW
2.2KW
7.5KW
420mm
φ1.5-12.0mm
8-12T/H
HKJ-508
132/160KW
2.2KW
11KW
520mm
φ1.5-12.0mm
12-18T/H

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

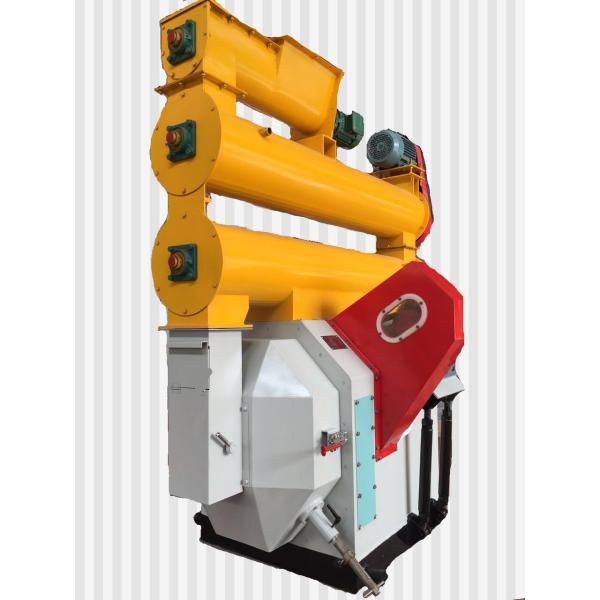

This one is double conditioners ring die pellet machine

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

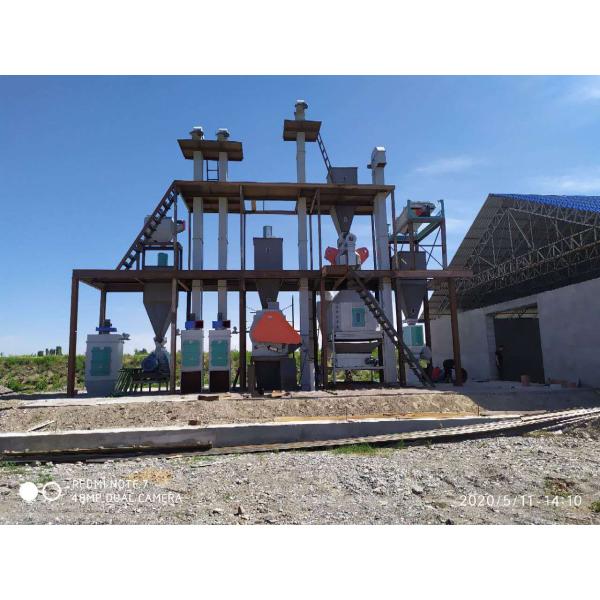

This above horizontal HKJ-250 chicken feed pellets line exported to Africa .

Process :
Main machines :
Function :
Crushing section
Hammer mill
Crush raw materials into powders
Batching and Mixing section Mixer batching manual or automatic then mixing the crushed powder evenly for later making the animal feed pellets more comprehensive and nutritious.
Pelleting section
horizontal ring die pellet machine
Press mixed raw materials into pellets
Cooling section
counterflow cooling machine
Reduce temperature to room termperature and reduce moisture of pellets for later easily storage
Finished pellets crumbling system roller crumbling machine for crumbling finished pellets to very smaller particles for baby chick feed
Packing section
Automatic packing machine
Weigh and pack the final pellets into bags and sewing the bags
Electric control
Electric control cabinet
Control the complete line

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet MachinesHigh Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines
