10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
Specifications
Brand Name :
Zhongdebao
Model Number :
PL-1-10TPH
Certification :
CE BV
Place of Origin :
China
MOQ :
1
Price :
price negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets per month
Delivery Time :
5-8 working days
Packaging Details :
wooden case package and directly loaded in the container
Application :
Chips, Biscuit, Snack, Puff Snack/Corn Snack/Extrusion Snack Process Line, Frying Snacks pellet making Extruder machine / production line
After-sales service provided :
Engineers available to service machinery overseas, Field installation, commissioning and training, Overseas service center available, Video technical support
Voltage :
380V/50HZ, 380v, 50hz, 380V/50HZ/Three Phase, 220V/50HZ/Single Phase or Change As Rquired
Power(w) :
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Warranty :
1 Year, one year, 12 MONTHS
Weight :
500kg, 6000kg, 1200kg, 2-10TON, 2000
Dimension(l*w*h) :
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, As per capacity
Condition :
New
Capacity :
1000kg/h to 10tons /h
Material :
Carbon steel Alloy steel
Motor :
Simens, Chinese motor or Simense
Product name :
biomass wood pellet production line
Color :
blue white green any color can be customized
Type :
biomass wood pellet producing line
Raw material :
wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavings, bagasse, palm husks, twigs, branches, bark, leaves, wood scraps; Large furniture factory, wood factory, wood chips produced by various kinds of wood in the
Main motor :
22kw 30kw 37kw 55kw
Output :
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Year :
2023
Description

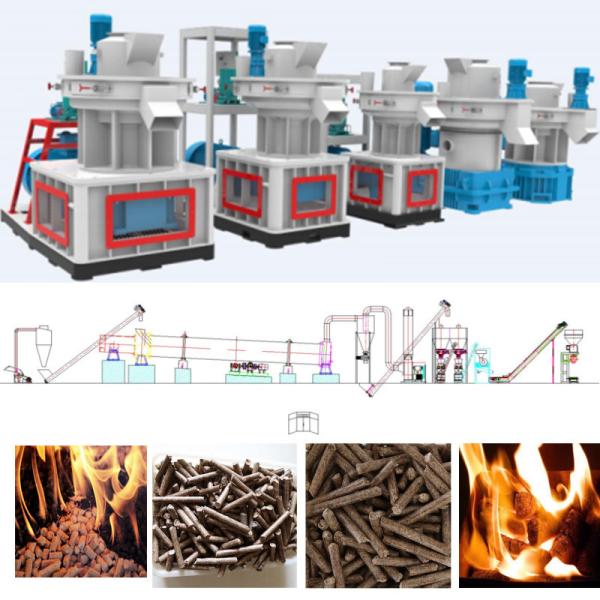

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line

(Chipping---Grinding---Drying---Pelleting---Cooling&Screening---Packing process).
The wood pellet line machines can make a variety of biomass raw materials into pellets. Its diameter is generally 6/8/10/12mm, and its water content is 10-15%. Biomass pellets have a wide range of sources, and common raw materials are:
raw mateiral : wood logs , sawdust planks , straws , other biomass wastes Etc.
Forestry Waste: such as waste wood, waste branches, sawdust, etc.
Agricultural Waste: such as crop straws, rice husks, peanut husks, bagasse, palm kernel husks, etc.
Construction Waste: such as waste paper, wooden frames, wooden templates, etc.
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
Main machines used : Wood pellet mills , Drum type wood chipper , Hammer mill , Rotatry drum type drying machine, counterlflow cooler , Automatic packing system .
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
Application of Biomass pellets :
Biomass pellets are made by recycling waste and are a new type of environmentally friendly fuel , widely used in residential heating equipment , power plants , boiler plants . etc. It has the characteristics of large heat generation , low ash content , low enviromental pollution, and recyclablility .
Commly used in Fireplace , biomass power plant , boiler fuel , Household biomass stove .
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
The advantages of Zhongdebao wood granulator machine's ring die ?
The ring die is the core coponent of the pellet machine ,and the quality of the ring die affects the life of the pellet machine .
  • The ring die of the Zhongdebao biomass pellet machine is made of 42CrMo , which is more wear-resistant and durable than ordineary alloy steel or carbon steel ring die .
  • The special surface carburizing treatment increases the surface hardness of the ring die and significantly improves the service life .
  • Compressed step release hole is adopted to ensure that the material enters teh die hole smoothly .
  • The high hole opening rate of ring die to ensure the continuous high output of the plellet machine .

Model
VR450
VR560
VR600
VR600A
VR700A
Power(kw)
55+0.37
90+1.5+0.37
110+2.2+0.37+0.65
132+2.2+0.37+0.65
160+2.2+0.37+0.65
Voltage
380v/220v 50hz 60hz customized
Rotation speed
1450r/min
Pellet size
4-12mm
Pelletize temperature
40-80 ℃
raw material moisture
15-25%
Weight
2.9T
5.6T
6.5T
7T
8T
Size
2160*1000*1850
2300*1250*2000
3100*1300*2100
2200*1200*1750
2460*1400*2000
Ring die inner diameter
450
560
600
600
700
Capacity
0.8-1T/H
1.2-1.5T/H
1.8-2T/H
2-2.5T/H
2.5-3T/H

For the pellet mold/die the diameter generally will be 6mm or 8mm .

The finished sample pellet for your reference :

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine
