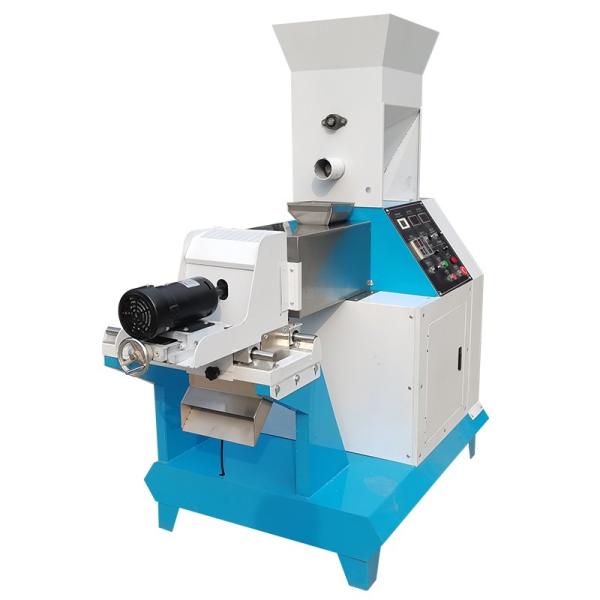

New 150kg/H Floating Fish Feed Extruder/Pet Feed Production Equipment
Product Description
1. The internationally advanced pellet cutting structure adopts a soft-to-fit form to achieve stepless speed change, and can cut the discharging material into products of the required length at will.
2. The design is novel and unique, the structure is simple and easy to disassemble, and it is easy to operate.
3. The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel materials, which are formed after heat treatment and have the advantages of wear resistance and long life.
4. The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents clogging.
Model | Capacity | Host power | Feeding power | Spiral diameter | Cutting power |
EWLX40 | 40-50kg/h | 5.5kw | 0.4kw | Φ40 | 0.4kw |
EWLX50 | 80-90kg/h | 11kw | 0.4kw | Φ50 | 0.4kw |
EWLX60 | 120-150kg/h | 15kw | 0.4kw | Φ60 | 0.4kw |
EWLX70 | 200-250kg/h | 18.5kw | 0.4kw | Φ70 | 0.4kw |
EWLX80 | 300-350kg/h | 22kw | 1.1kw | Φ80 | 0.75kw |
EWLX90 | 350-400kg/h | 30kw | 1.1kw | Φ90 | 1.5kw |
EWLX100 | 400-500kg/h | 37kw | 1.1kw | Φ100 | 1.5kw |
Dry puffing machines are mainly used for puffing aquatic feed or for puffing single raw materials. The puffed feed particles are beneficial to the digestion and absorption of animals and improve the digestion and utilization rate of nutrients. Mainly suitable for professional farmers, large, medium and small feed mills and research institutions.
The material is pushed by the screw, continuously moves forward, and is finally squeezed. These materials are subjected to mixing, stirring, friction, and high shear, which eventually causes the starch granules to disintegrate. At the same time, the temperature and pressure of the machine cavity increase, and then they are instantly extruded from the die holes of a certain shape to form floating puffed granules.
RAQ:
Q: What kind of products can be made?
A: Animal feed. Floating fish feed, cat food, dog food, etc.
Q: What is the delivery time?
Answer: 10 days
Q: How long is the warranty period for using this device?
A: 1 year, just replace the wearing parts.
