Specifications
Brand Name :
Adcol
Model Number :
ATA-115 (C200) -48VDC R02
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3 - 4 Weeks
Packaging Details :
Solid Carton Packaging
Cooling Power Qmax :
115W
Input Voltage :
48VDC
Running Current :
4.1A
Start Current :
5.3A
Nominal V :
48VDC
Power input :
200W
Description

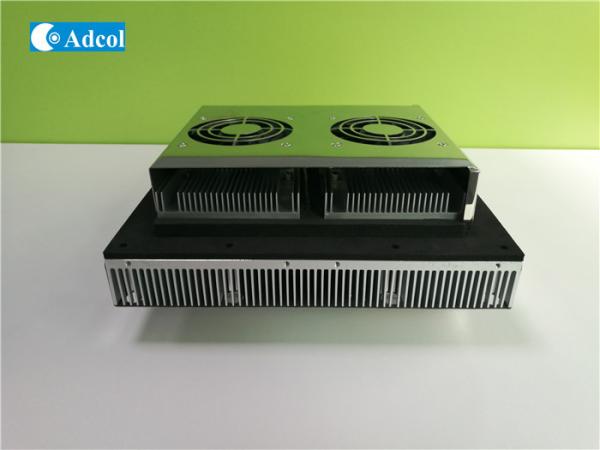

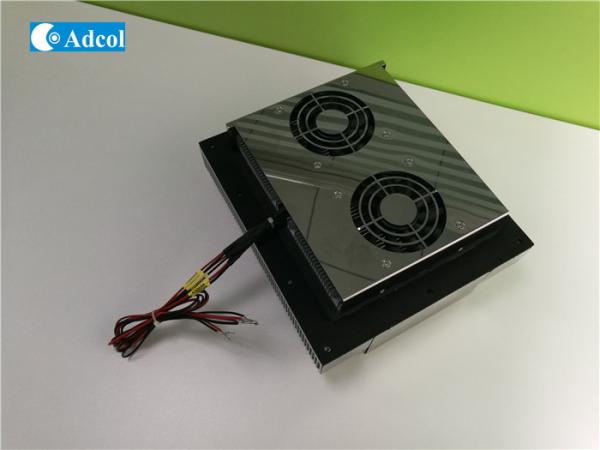

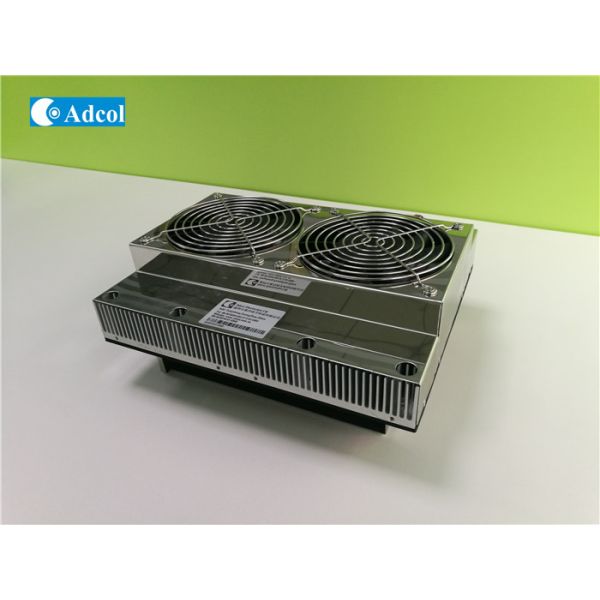

Air To Air Thermoelectric Assembly Thermoelectric Conditioner

ATA-115-48 Product Description

​The ATA Power Cool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement flow to transfer heat. It offers dependable, compact performance by cooling objects via convection. Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom designed to achieve a high coefficient of performance (COP).

​Features
​- Compact design
​- Reliable solid-state operation
- DC operaton
- RoHS compliant

​Characteristics
​- Application : Outdoor Batter Cabinets
​- Meet RoHs & WEEE
​- EMC meet class B
​- Safety: IEC60950-1/EN
​- Anti-Corrosion: IEC68-2-30/52

​Performance Data
Cooling Power Qmax : 115W
Running Current: 4.1 A

​Startup Current: 5.3 A

Nominal Voltage : 48V
​Max Voltage : 55.2 V
​Power input : 200W
Operating Temperature : -10 ~ 70 degree C
Weight : 4KG
​MTBF(fan-hrs): 60000
Performance Tolerance : 10%
​Dust and Water proofing : IP55
​Noise : <55dB
