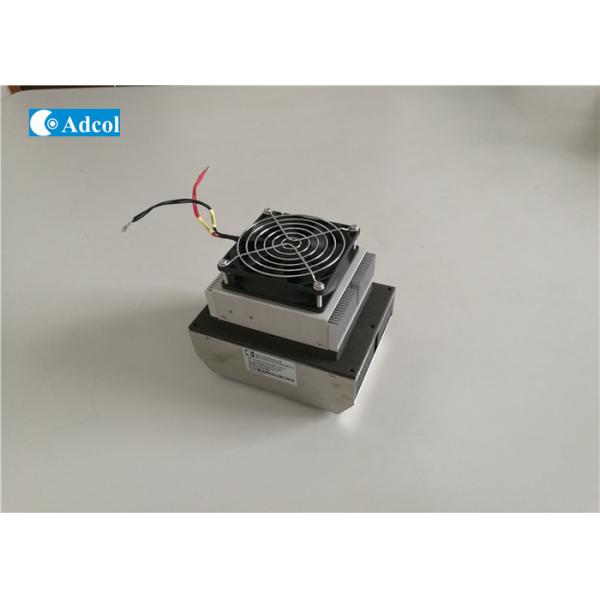

50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling
Specifications
Brand Name :
Adcol
Model Number :
ATA050-24-00
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Supply Ability :
5000pcs
Delivery Time :
1-2 weeks
Packaging Details :
Solid Carton
Cooling Power :
50W
Volt :
24VDC
Current :
4.0A Normal
Weight :
1.8kg
Description

50W 24VDC Peltier Thermoelectric Cooler Air Conditioner TEC Module Cooling

TEC air conditioner consists of 6 parts: peltier module (including sealing and insulation material), cold end radiator, hot end radiator, cold end fan, hot end fan, monitoring module. When power supply is connected to the TEC, one side of the peltier conduct cooling, and the other side of the peltier conduct heating, the cool (heat) from which will diffuse to the surrounding environment through cold (hot) end radiators and fans. The cold end radiator and cod end fan constitute the inside circulation for cooling the cabinet internal environment, while the hot end radiator and hot end fan constitute outside circulation for heat radiation to the external environment.

Features
50W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
–20°C to +60°C Shift between heating and cooling without using a heater
educed noise and vibration with no moving parts

Application
Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

General Specification

P/N: ATA050-24-00
Cooling Method : Air Cool
Radiating method : Force Air
Ambient temperature/humidity: -20 to 60°C
Cooling Capacity : 50W
Input Power : 135W
Hot/Cold side fan Current : 0.25/0.18 A
TEM Nominal/Startup Current : 4.0/4.6A
Nominal/Max Voltage : 24/30 VDC

Overall dimension : 160mm x 122.4mm x 147mm ref

Weight : 1.8Kg
Life Time >=70,000 Hours
Tolerance: 10%
