Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
Specifications
Brand Name :
Adcol
Model Number :
ATA150 - 24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3 - 4 Weeks
Packaging Details :
Solid Carton Packaging
Capacity :
149W
Input Voltage :
24VDC
Max.Ambient Temp. :
60 Degree C
Running Current :
8.7 amps
Weight :
7.5 kg
Rating Maintained :
NEMA12
Description

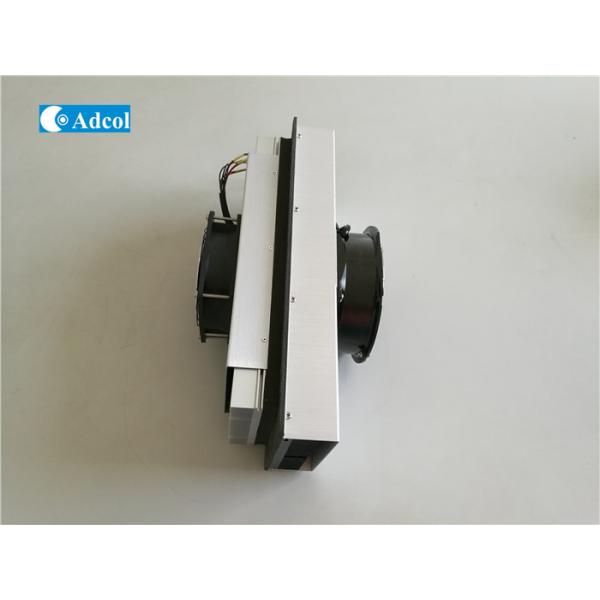

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

The ATA150-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient tem- peratures while removing up to 550 BTU/Hr (@ 77˚F ambient). 24 or 48 VDC configuration. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Position ATA150-24
1 TEC +
2 TEC -
3 Cabinet side fans +
4 Cabinet side fans -
5 Ambient side fans +
6 Ambient side fans -

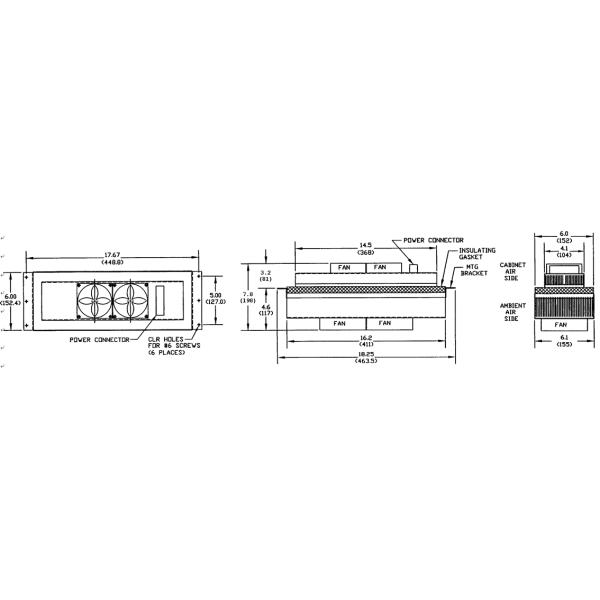

Dimensional Drawing
Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

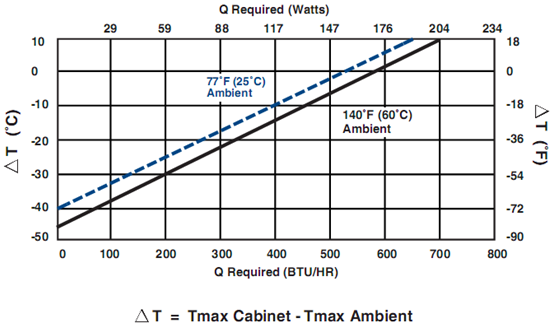

Performance Curve :


Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC

Model: Adcol ATA150-24/48vdc
Capacity 149 Watts
Input Voltage 24/48 VDC
Max. Ambient Temp. 60˚C
Current (Running) 8.7/4.3 amps
Weight 7.5 kg
Rating Maintained NEMA 12


Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
