48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet
48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet
48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet
48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet
Specifications
Brand Name :
Adcol
Model Number :
ATA150 - 48VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
Capacity :
149W
Input Voltage :
48VDC
Max. Ambient Temp. :
60 Degree C
Running Current :
4.3amps
Weight :
7.5kg
Rating Maintained :
NEMA12
Description

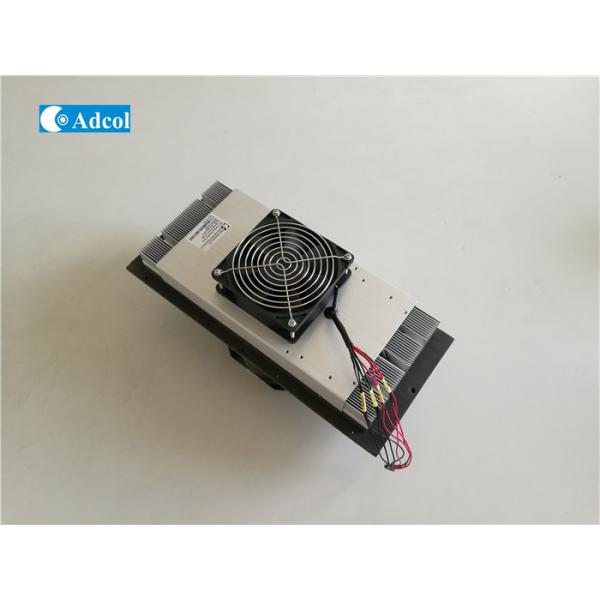

48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet

The ATA150-48VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient tem- peratures while removing up to 550 BTU/Hr (@ 77˚F ambient). 24 or 48 VDC configuration. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)

48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet

Position ATA150-48
1 TEC +
2 TEC -
3 Cabinet Side Fans +
4 Cabinet Side Fans -
5 Ambient Side Fans +
6 Ambient Side Fans -


Dimensional Drawing
48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet

Performance Curve :

48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet

Model: Adcol ATA150-24/48vdc
Capacity 149 Watts
Input Voltage 24/48 VDC
Max. Ambient Temp. 60˚C
Current (Running) 8.7/4.3 amps
Weight 7.5 kg
Rating Maintained NEMA 12


48VDC Thermoelectric Air Conditioner Mini Refrigerator For Outdoor Cabinet
