Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC
Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC
Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC
Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC
Specifications
Brand Name :
Adcol
Model Number :
ATA050 - 24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
200Pcs per month
Delivery Time :
3 - 4 Weeks
Packaging Details :
Solid Carton Packaging
Capacity-Qmax :
50W
Input Voltage :
24VDC
Running Current :
4.0amps
Start Current :
4.6amps
Hot Side Fans Current :
0.25amps
Cold Side Fans Current :
0.18amps
Description

Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC

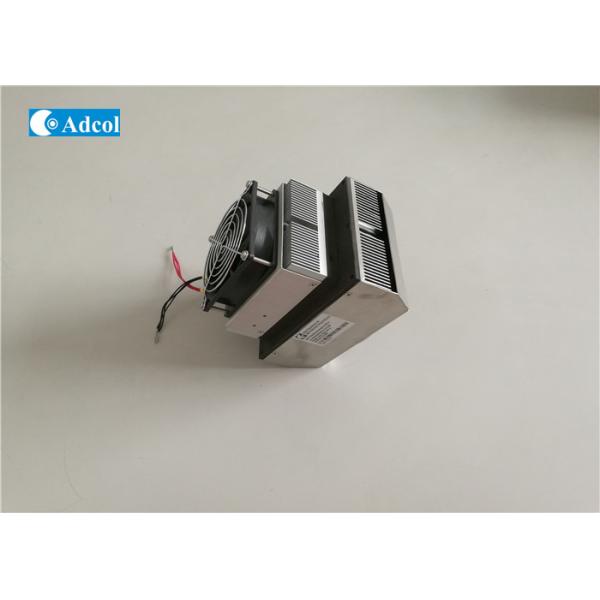

The ATA050-24VDC Thermoelectric air to air TEC conditioner is designed for electronic cabinets and environmental chambers. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 50W. This model is available in 12VDC and 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)
Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC

​Position Description
1 TEC +
2 TEC -
3 FAN +
4 FAN -

1 – Specifiction:

Model: ATA050-24VDC
Description Air to Air cooling System
Capacity- Qmax 50 Watts
Input Voltage 24 VDC
Working. Ambient Temp. 0~60˚C
TEM Current (Running) 4.0 amps
TEM Current (Start) 4.6 amps
Hot Side Fans Current 0.25 amps
Cold Side Fans Current 0.18 amps
Weight Est. 1.8kg
Rating Maintained NEMA 12
Overall Dimensions 160mm x 123mm x 133mm


2 - Installation Method and Cutout Dimension (in mm)

Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC

3 – Pormance Curve

Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC

Thermal Management Outdoor Air Conditioner Mini Peltier Thermoelectric Assembly 50W 24VDC
