Specifications
Brand Name :
Adcol
Model Number :
ATA080 - 24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3 - 4 Weeks
Packaging Details :
Solid Carton Packaging
Capacity :
80W
TEM Running Current :
4.5amps +/-10%
TEM Start Current :
5.3amps
Weight :
Est. 2.8kg
Rating Maintained :
NEMA12
Dimension :
203*155*213mm
Description

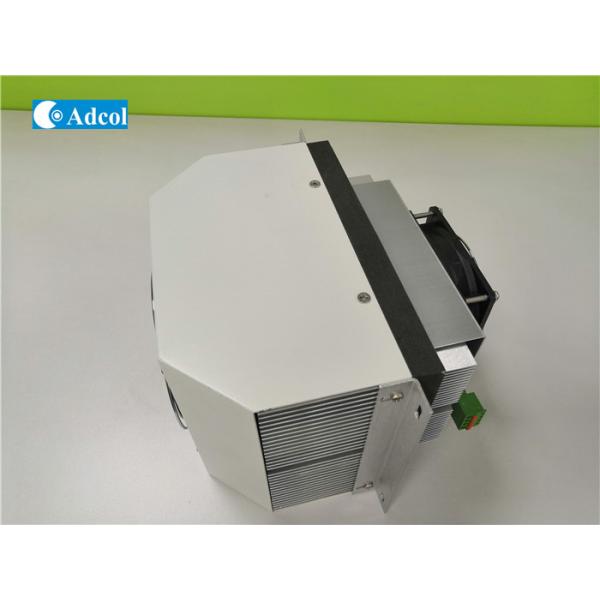

Environmentally Friendly Thermoelectric Air Cooler For Outdoor Cabinet

ATA080-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 24VDC configuration, it could generate 80W power, if use 12VDC configuration, it could generate 100W power. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)
Environmentally Friendly Peltier Cooler Air Conditioner For Outdoor Cabinet

Position Description
1 TEC +
2 TEC -
3 FAN +
4 FAN -

1 – Specification:

Model: ATA080-24VDC
Description Air to Air cooling System
Capacity- Qmax 80 Watts
Input Voltage 24 VDC
Working. Ambient Temp. 0~60˚C
TEM Current (Running) 4.5+/-10%amps
TEM Current (Start) 5.3amps
Hot Side Fans Current 0.35 amps
Cold Side Fans Current 0.25 amps
Weight Est. 2.8 kg
Rating Maintained NEMA 12
Overall Dimensions 203mm x 155mm x 213mm
