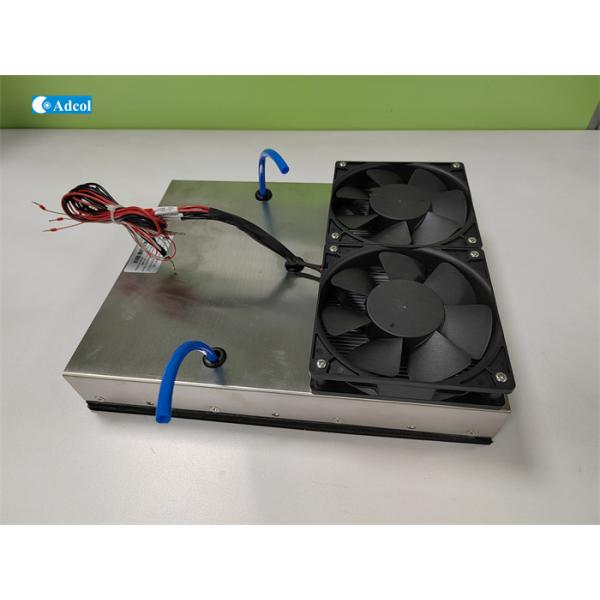

TEC System Medical Thermoelectric Air To Peltier Plate Cooler 150W

Apart from thermoelectric modules Kryotherm company also produces different types of thermoelectric cooling assemblies.

Thermoelectric cooling assembly is a device, produced like several heat-exchange devices bound together with thermoelectric coolers between them.

Sphere of application of the thermoelectric assemblies is very wide. They can be used for production of refrigerators, air conditioners, systems of electronic devices cooling, etc. Assemblies are optimized for 12, 24 and 48 V supply voltage that makes it possible to plug in them to the power sources of automobile, railroad and water transport.

Heat insulation, installed between the radiators, hinders the reverse transfer of heat to the cooling object.

Each thermoelectric assembly, created by Adcol has holes for mounting and switching plane for power supply. A temperature sensor and temperature controller installation on the assembly is available as an extra option.

FAQ

1. How do we know which model is suitable for us?
a. Confirm the ambient temperature (Th);
b. Confirm the required temperature of the cooling space or objects (Tc);
c. Confirm the application’s heat load power (Q, the heat need to be removed or lowered);
d. Determine the required cooling capacity (Qc, considering heat loss, it is recommended Qc = 1.5 * Q);
e. Find out TE products from the catalog, whose maximum heat pumping capacity (Qmax) matches with the Qc worked out by step #4 (±5W), and then refer to the expected Current and Voltage to pick out a suitable product.
If the single product could not meet the requirement, you can also use series or parallel connect multiple products to get higher performance, the quantity = Qc / Qmax (Single products).
