ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
Specifications
Brand Name :
Adcol
Model Number :
ATA150-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA150-24VDC
Cooling Method :
Air Cool
Radiating method :
Air Cool
Ambient temperature/humidity :
-40 to 55°C
Cooling Capacity :
145W
Input Power :
195W
Heating Capacity :
300W
Hot/Cold side fan Cument :
0.46/0.24 A
TEM Nominal/Startup Current :
7.5/9.5A
Nominal/Max Voltage :
24/27VDC

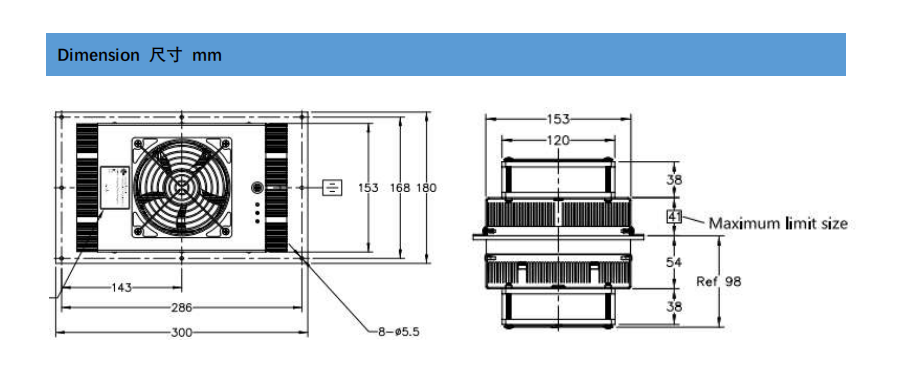

Overall dimension :
300mmx180mmx175mm
Life Time :
>=70,000 Hours
Noise :
50 dB
Tolerance :
10%
Description

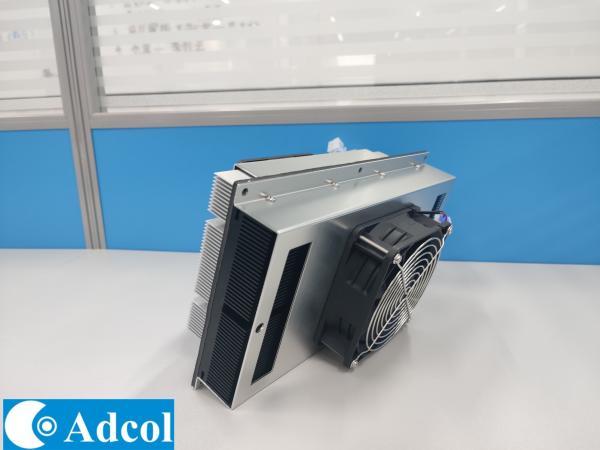

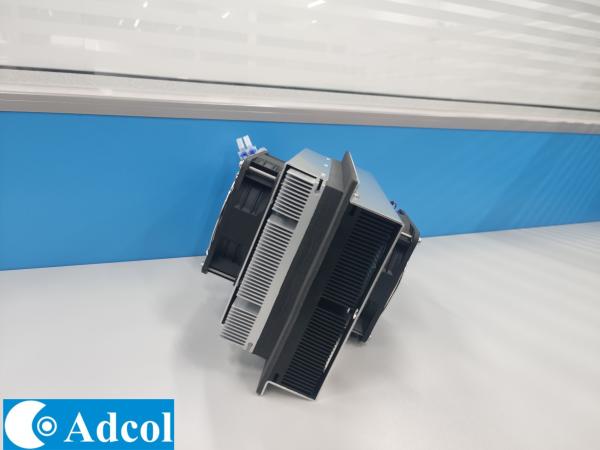

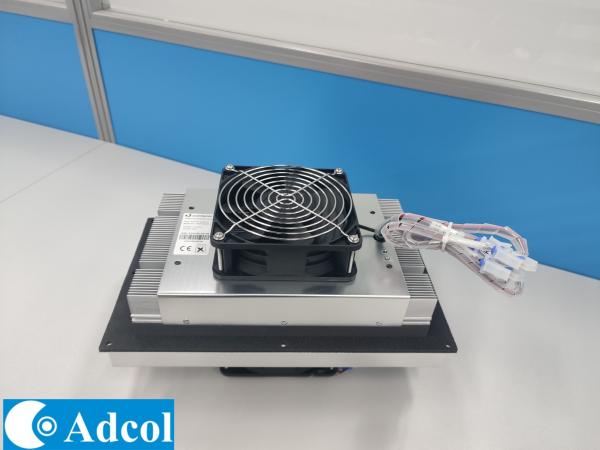

ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers

ATA150-24-00

Air to air thermoelectric Cooler Assembly
The ATA150-24 Thermoelectric air conditioner is designed forelectronic cabinets and environmental chambers. lt can maintainambient temperatures while removing up to 148w. This modelis available in 24VDC configurations. This air conditioner isvirtually maintenance-free, with no filters ambient to change.and it can be mounted in any orientation, offering designflexibility with solid-state reliability.

Features 特点
145W capacity rated at ΔT= 0℃,Tambient = 27°℃ 在环境温度 27 度下制冷量约 145 瓦

Refrigerant free-environmentally friendly 不使用制冷剂-环境友好

Wide operating temperature range of-40°Cto +55°℃ 使用环境温度宽-40°C to +55°

CShift between heating and cooling without using a heater 加热制冷切换

Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠

Application 应用
Outdoor enclosures 户外柜子的冷却
Outdoor/Indoor Kiosks and display 户外户内机柜和显示装置的冷却
Battery Cabinet电池仓的冷却
Food/Consumer Refrigerator食品消费品冷藏箱

ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental ChambersATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers

ATA150-24-00 Air To Air Thermoelectric Cooler Assembly For Cooling Electronic Cabinets And Environmental Chambers
