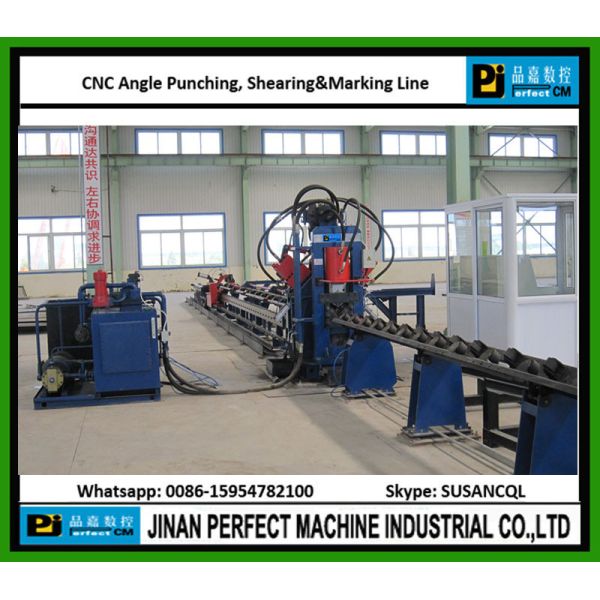

CNC High Speed Angle Punching, Shearing & Marking Line (Model BL1010)
CNC High Speed Angle Punching, Shearing & Marking Line (Model BL1010)
Specifications
Place of Origin :
China
Brand Name :
PERFECT
Model Number :
BL1010
Certification :
ISO9001-2008
Minimum Oeder Quantity :
1
Payment Terms :
TT
Supply Aility :
10000
Price :
USD
Packaging Details :
STANDARD
Delivery Time :
10
Supply Ability :
1000
MOQ :
1
Description

CNC High Speed Angle Marking, Punching And Shearing Line


Technical Data:

Model

BL1010

Functions

Punching, marking, shearing

Angle size (mm)

40х40х3～100х100х10

Max. Punching (dia. х thi.) (mm)

Φ26х10 (8mm, Q345)

Punching force (kN)

600

Marking force (kN)

800

Cutting force (kN)

1000 (Q345, 90х8mm)

Max. length of blank (m)

12

Max. length of finished (m)

12

Punches per side

2

Group of Marking letters

4

Dimension of letter (mm)

14×10×19

CNC axes

3

Cutting mode

Single blade cutting

Feeding speed of angle (m/min)

80

Processing precision

Accordance with GB2694

Program function

Real time fault display

Programming mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Program function

Error display

Technical Charecteristics:


1. Integrateded machine with mechanical, electrical and hydraulic elements;
2. Numerical controlling, three axes servo motor feeding;
3. Infinite gaugelines and no limits of the hole rows;
4. Imported electronic, hydraulic and pneumatic elements;
5. Easy programming, connectable with data files generated directly by copying the specimen;
6. Diagrammatic display of workpiece;
7. Adapted to angles with great bending deflection;


Advantages:


1. Rigid and compact structure
2. High productivity with automatic marking, punching, cutting off and stacking operations;
3. High meterial utilization with optimum pattering;
4. Low labour working strength and high precision of workpieces.


For details, pls inquiry by Email: susancql@aliyun.com ;

Skype: SUSANCQL;

Whatsapp: +86-15954782100

We welcome any inquiry and questions to us at any time.

Thanks for your request.

Susan

Director
