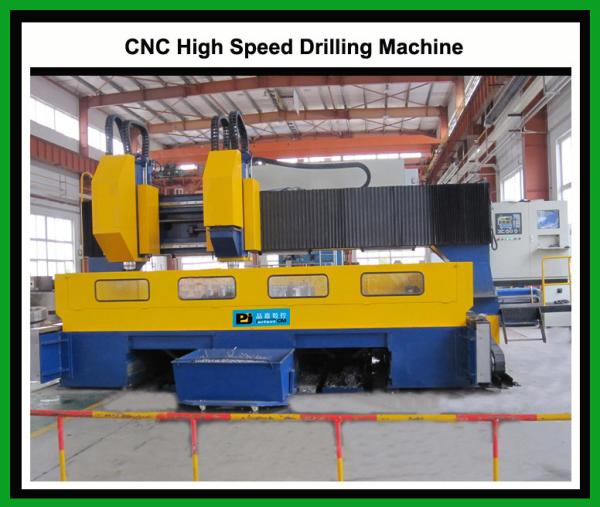

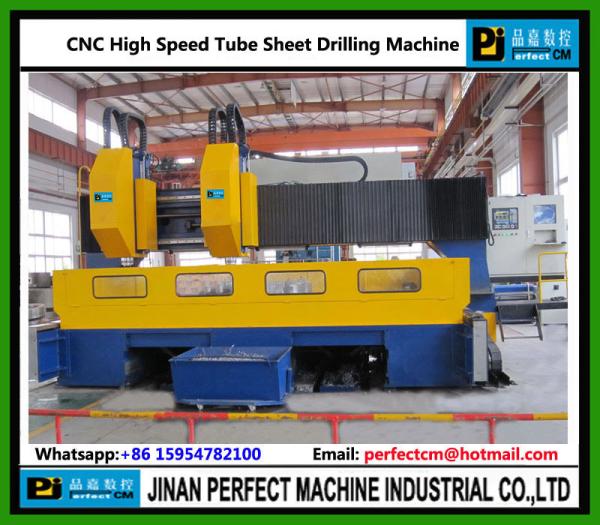

High Speed CNC Drilling Machine for Tube Sheet (Model PHD4040-2/PHD5050-2/PHD6060-2)

Applicable Industry:
Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.

Product Basic Parameter:

Model

Item

PHD4040-2

PHD5050-2

PHD6060-2

Maximum Size Of Workpiece

LXW (mm)

4000X4000

5000x5000

6000x6000

Max.Thickness Of Workpiece

250mm

NO.Of Champs

No.s

12

Worktable

T-Slot width/Space

28/500 mm

Vertical Sliding Drilling Head

Quantity

2 No.S

Spindle Taper

BT50

Max.Drilling Diameter

(Plain Carbon Steel)

φ40mm(Carbide Drill)

φ50mm

(High-Speed Steeltwist Drill)

Main Spindle Rotation Speed

30-2800r/Min

Spindle Motor Power

2x22kw

The Distance From Bottom Spindle To Worktable

300-800mm

Longitudinal Movement Of Gantry(X Axis)

Max. Stroke

4000mm

5000mm

6000mm

X Axis Movement Speed

0-8m/Min

X Axis Servo Motor Power/Torque

2X3kw/28.4Nm

Lateral Movement Of Power Head(Y Axis)

Max. Stroke

4000mm

5000mm

6000mm

Y Axis Movement Speed

0-8m/Min

Y Axis Servo Motor Power/Torque

3kw/28.4Nm

Vertical Sliding Feeding Movement

(Z Axis)

Z Axis Stroke

500mm

Z Axis Feeding Speed

0-5m/Min

Z Axis Servo Motor Power/Torque

2x3kw/28.4Nm

Positioning Accuracy

X,Y Axis

≤0.1mm / Full length

Repeat Positioning Accuracy

X,Y Axis

≤0.05mm / Full length

Hydraulic System

Hydraulic Pump Pressure / Flow

6.5Mpa /25L/Min

Hydraulic Pump Motor Power

2.2kw

Pneumatic System

Compressed Air Supply Pressure

0.5Mpa

Chip Removal And Cooling

Chip Removal Type

Plate Chain Type

Quantity

2 No.s

Chip Removal Speed

1m/min

Chip Removal Motor Power

2x0.75kw

Internal Cooling Water Pump Motor

2x3kw

External Cooling pump Motor power

2x0.75kw

Automatic Lubrication System

Lubrication Pressure

2Mpa

Lubrication Point Fuel Injection

0.1ml

Lubrication Cycle

6-10min

Electrical System

CNC System

FAGOR8055

CNC Axis

6

Overall Dimensions Of Machine

LXWXH

About 7800X6100X3600mm

About 8800X7100X3600mm

About 9900X8100X3600mm

Weight of Machine

About 50t

About 60t

About 70t
