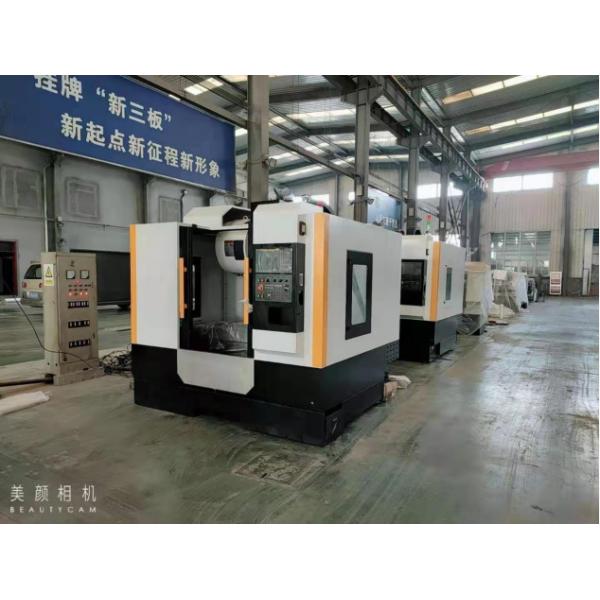

CNC Machining Center (Model VCM-855)
CNC Machining Center (Model VCM-855)
Specifications
Brand Name :
PERFECT
Model Number :
VCM-855
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
1
Price :
USD
Supply Ability :
1000
Delivery Time :
10
Packaging Details :
STANDARD
Minimum Oeder Quantity :
1
Payment Terms :
TT
Supply Aility :
10000
Description

CNC Machining Center

Model VCM-855

CNC Machining Center (Model VCM-855)

Main Specification:

Specifications unit VCM-855
X/Y/Z axis
X/Y/Z axis Stroke mm 800/550/550
Distance from spindle center to column guide mm 590
Distance from spindle nose to table surface mm 120-670
Worktable
Worktable Szie Mm 1000x550
Worktable Max.Load KG 500
T-Slot
Table T-solt(Number-width×pitch) mm 5-18×90
Spindle
Spindle Taper 7:24
Spindle Rotation speed rpm 8000
Spindle Transmission Type Timing belt
Bearing Lubrication Mode Oil-immersed Lubrication
Spindle Motor Power KW 7.5
Three AXES Motor Power KW 3.0
Feeding
X&Y Axis Fast Movement m/min. 24
Y Axis Fast Movement m/min. 24
Max. Cutting Feeding Speed m/min. 10
Auto Tool Changer System
Tools Quantity (Standard) 24
Spindle Type BT40
Tools Clamping & Loosen Pressure Increasing Cylinder
Average Tool Change time Second 3.5
CNC System 0i-MF JAPAN FANUC
Accuracy
Positioning Accuracy mm ±0.01
Re- Positioning Accuracy mm ±0.01/300
Machine Weight KG 5000
Air Pressure Requirement Kg/cm² 6
Machine Overall Dimension Mm 3000x2300x2200
