Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel
Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel
Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel
Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel
Specifications
Brand Name :
Citti Mesh
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T
Price :
Negotiable
Supply Ability :
large supply
Delivery Time :
a week
Packaging Details :
Packing in cartons or wooden cases
product name :
Ladder conveyor belt.
Material availability :
stainless steel, carbon steel and galvanized steel
Speed :
from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt)
Temperature range :
-100°C to +300°C.
Description

Ladder conveyor belt - Simple Structure Versatile Function

Ladder conveyor belt, also called as rod conveyor belt, is popularly used in baking industry for its flat surface, easy assemble, minimum maintenance and thorough cleaning. Light weight ladder belting is an economical and cost-effective option for many different conveyors used in different industries. Positively driven by sprocket, ladder belting will be used in straight-running or radial applications ( 90 and 180 degrees).

Ladder conveyor belt is made of stainless steel, carbon steel and galvanized steel, and the intensity of the material is very high, so it can be applied to many occasions. In addition, the opening area ratio of 86% enables greater air flow to increase the efficiency of cooling, heating, drainage and drying performance.

Specifications of Ladder conveyor belt

Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel

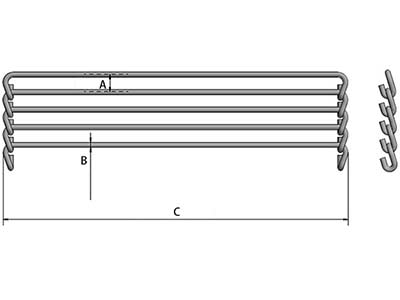

A: Pitch (mm) B: Rod diameter (mm) C: Overall Width (mm)

Item No. Pitch Rod diameter Maximum width
mm mm mm
LCB01 12.7 3.66 762
LCB02 15.87 4.47 914
LCB03 19.05 4.88 914
LCB04 25.4

Features of Ladder conveyor belt

  • Positively sprocket driven belt.
  • Straight-running or radial applications.
  • Flat carrying surface.
  • High tensile strength rods.
  • Easy to assemble and disassemble.
  • Popularly used in baking industry.
  • Thorough cleaning.
  • Minimum maintenance.

Applications of Ladder conveyor belt

  • Cooking.
  • Heating.
  • Packaging.
  • Drainage.
  • Cooling.
  • Freezing.
  • Washing.

Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel

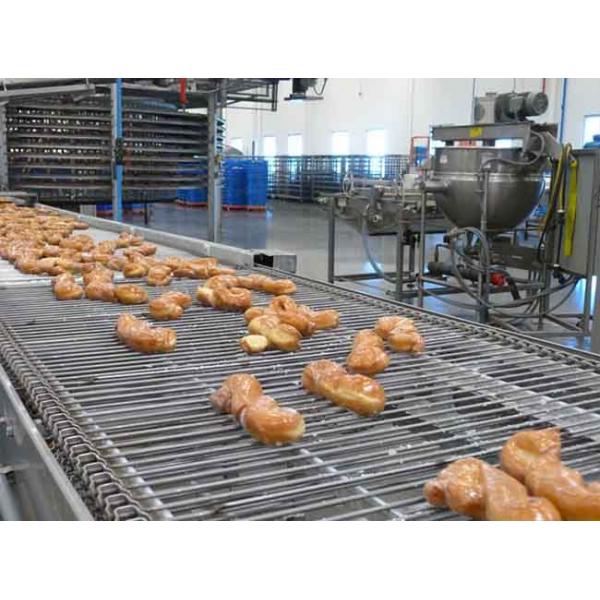

For transporting bread

Versatile Ladder Conveyor Belt Carbon Steel And Galvanized Steel

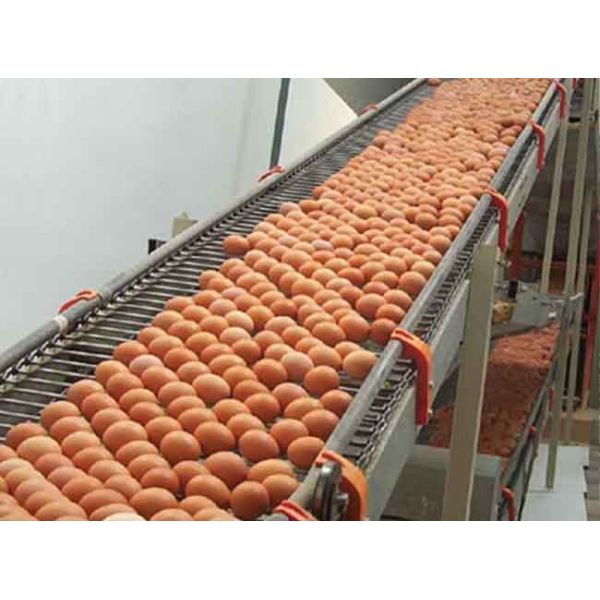

For transporting eggs
