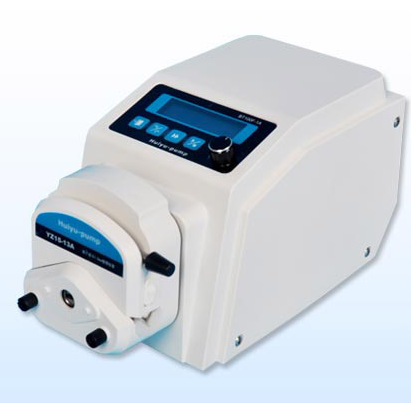

ENZYME filling feeding PERISTALTIC PUMP
ENZYME filling feeding PERISTALTIC PUMP
ENZYME filling feeding PERISTALTIC PUMP
ENZYME filling feeding PERISTALTIC PUMP
ENZYME filling feeding PERISTALTIC PUMP
ENZYME filling feeding PERISTALTIC PUMP
Specifications
Warranty :
1 year
Customized support :
OEM
Brand Name :
Huiyu
Model Number :
BT100F-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry
Horsepower :
0.05
Power Source :
Electric
Pressure :
Low Pressure
Structure :
Peristaltic Pump
Voltage :
110v 220v
motor :
stepper motor
product :
ENZYME PERISTALTIC PUMP
Brand :
Huiyu
flow rate :
0.07-380ml/min
power supply :
AC 220V ±20%
motor speed :
0.1-100rpm
dimension(LxWxH) :
243X151X157 (mm)
Drive weight :
3.5 kg
pressure :
0.2mpa 2bar
Usage :
water,fluid,reagent,oil,detergent
Fuel :
electricity
Packaging Details :
1 ENZYME PERISTALTIC PUMP in 1 carton ,
with foam plastic
Port :
Beijing,Tianjin,Qingdao
Supply Ability :
100 Set/Sets per Week
Price :
$355.00/sets >=1 sets
Description

ENZYME filling feeding PERISTALTIC PUMP

Product Description

ENZYME filling feeding PERISTALTIC PUMP

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet
Pump head model Available tubing flow rate range (ml/min)
YZ15-1A 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm 0.07-380ml/min
YZ25-1A 15#,24# wall thickness 2.5mm 0.2-270ml/min
DG-1A
ID≤3.17mm;
wall thickness 0.8-1.0mm;
A Refers to 6 rollers;
B refers to 10 rollers		 0.00025-48ml/min
DG-1B 0.0002-32ml/min
DG-2A 0.00025-48ml/min Single channel
DG-2B 0.0002-32ml/min Single channel
DG-4A 0.00025-48ml/min Single channel
DG-4B 0.0002-32ml/min Single channel

ENZYME filling feeding PERISTALTIC PUMPENZYME filling feeding PERISTALTIC PUMP

Packaging & Shipping

ENZYME filling feeding PERISTALTIC PUMP

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

ENZYME filling feeding PERISTALTIC PUMP

Suitable pump head

ENZYME filling feeding PERISTALTIC PUMP

OEM option

ENZYME filling feeding PERISTALTIC PUMP

Accessories

ENZYME filling feeding PERISTALTIC PUMP

CE certificate

ENZYME filling feeding PERISTALTIC PUMP

ENZYME filling feeding PERISTALTIC PUMP
