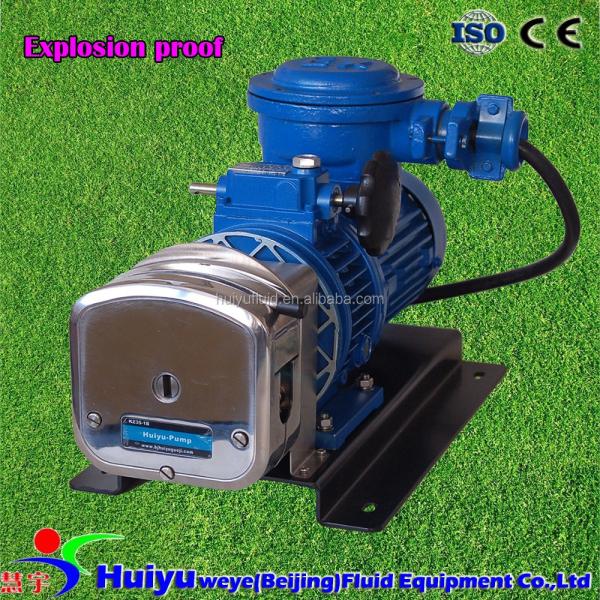

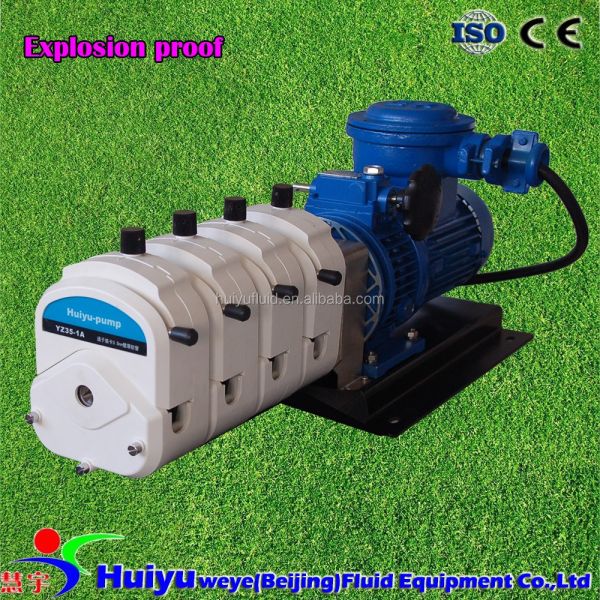

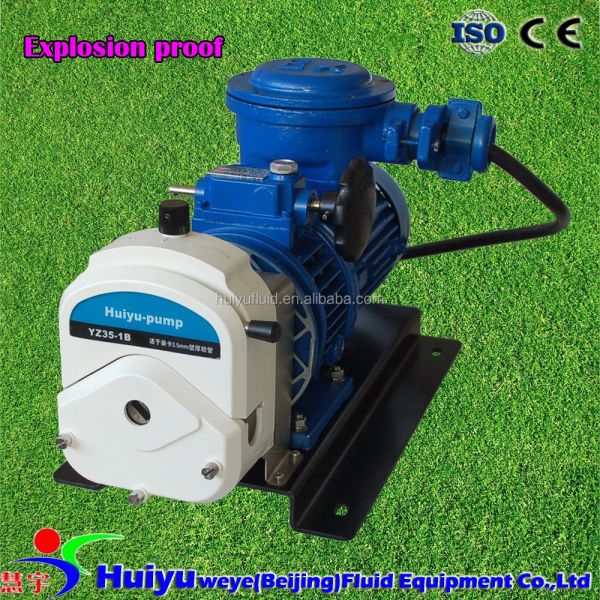

big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
big flow Explosion proof peristaltic pump
Specifications
Warranty :
1
Customized support :
OEM
Brand Name :
Huiyu fluid
Model Number :
FB600-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry
Power Source :
Electric
Pressure :
Low Pressure
Structure :
Peristaltic Pump
Voltage :
220v 360v
product :
Explosion proof peristaltic pump for Electroplating Chemicals
Brand :
Huiyu fluid

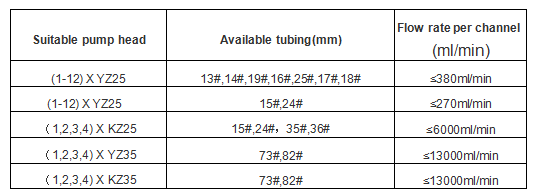

flow rate :
≤13000ml/min
power supply :
380V,660V,1140V,380V/660V,660V/1140V
motor speed :
200--1000rpm
dimension(LxWxH) :
430*260*310(mm)
Drive weight :
29kg
IP rating :
IP55
Explosion proof mark :
ExdI Mb,ExdII BT4Gb
Packaging Details :
1 pump in 1 carton with foam plastic
Port :
Beijing
Supply Ability :
100 Set/Sets per Week
Price :
$1,000.00 - $1,500.00/sets
Description
Product Description

Explosion-proof three-phase asynchronous motor drive for use in methane or coal dust (non-mining face) fixed equipment, or contain two Class B T1-T4 group Flammable gas or steam and air to form an explosive mixture Of the premises used on the device.

The junction box is located at the top of the motor and can be oriented in four directions. It is suitable for two kinds of structure: rubber cable and steel pipe wiring. The junction box can support 3-6 terminal blocks respectively, and a grounding terminal is set up according to its specifications. One (M8 and below) or two (M10 and above) outlet.

big flow Explosion proof peristaltic pump

big flow Explosion proof peristaltic pumpbig flow Explosion proof peristaltic pump

big flow Explosion proof peristaltic pump
CE certificate

big flow Explosion proof peristaltic pump

big flow Explosion proof peristaltic pump
