MachineU > China Products > Home Appliance > Water Treatment Appliances > Water Dispensers > Portable Water Dispenser Pump

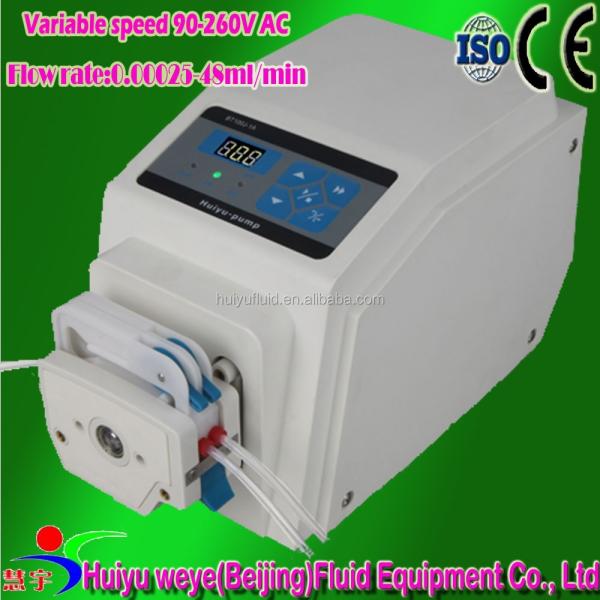

Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Huiyu aquarium filter peristaltic pump with silicon tube
Specifications
Warranty :
1year
Customized support :
OEM
Brand Name :
Huiyu fluid, Huiyu aquarium filter peristaltic pump with silicon tube
Model Number :
BT100J-1A, BT100J-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, wastewater treatment
Horsepower :
0.04
Power Source :
Electric
Pressure :
0.2mpa, Low Pressure
Structure :
peristaltic pump
Cable Length :
1.5m
Outlet Size :
6.4mm
Voltage :
220v 110v
Power :
40w
Motor speed :
1 to 150 rpm, reversible
Flow rate :
0.00025-570ml/min
Usage :
medical, biological ,chemical,laboratory
Power supply :
AC 90V-260 V 50/60 Hz
Power consumption :
≤30 W
Dimensions : :
243x151x157 (mm)
Certification :
ce
Packaging Details :
Beijing Huiyu laboratory 570ml peristaltic dosing pumping
packing:1set in 1 carton , size: 39cm x 22cm x 24cm
Port :
Beijing
Supply Ability :
1000 Set/Sets per Week
Price :
$255.00/sets >=1 sets
Description
Product Description
Huiyu aquarium filter peristaltic pump with silicon tube

Huiyu aquarium filter peristaltic pump with silicon tube

Huiyu aquarium filter peristaltic pump with silicon tubeTechnical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head Model Available tubing flow rate range (ml/min)
YZ15-l3A 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm 0.07-380ml/min
YZ25-l3A 15#, 24# wall thickness:2.5mm 0.2-270ml/min
DG10-lA wall thickness:0.8-1.0mm
ID≤3.17mm
A Refers to 6 rollers; B refers to 10 rollers		 0.00025-48ml/min
DG10-1B 0.0002-32ml/min
DG10-2A 0.00025-48ml/min
(Single channel)
DG10-2B 0.0002-32ml/min
(Single channel)
BZ25-lA 24#
wall thickness:2.5mm		 0.26-260ml/min

Tubing details

Huiyu aquarium filter peristaltic pump with silicon tube

Suitable pump head

Huiyu aquarium filter peristaltic pump with silicon tube

Accessories

Huiyu aquarium filter peristaltic pump with silicon tube Huiyu aquarium filter peristaltic pump with silicon tube

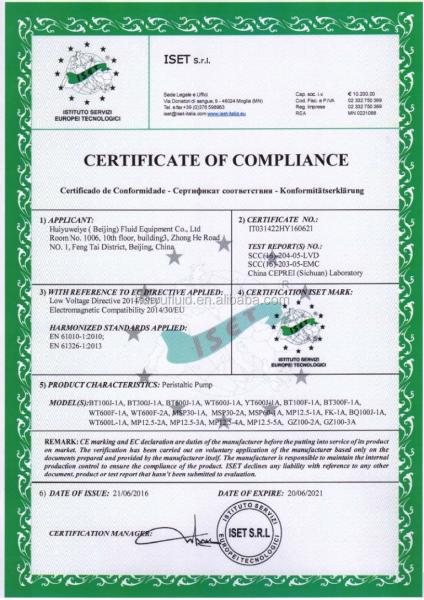

CE certificate

Huiyu aquarium filter peristaltic pump with silicon tube

OEM option

Huiyu aquarium filter peristaltic pump with silicon tube

Packaging & Shipping

Huiyu aquarium filter peristaltic pump with silicon tube

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Huiyu aquarium filter peristaltic pump with silicon tube
