JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
Specifications
Warranty :
1year
Customized support :
OEM
Brand Name :
Huiyu fluid
Model Number :
JL350J-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, wastewater treatment
Horsepower :
0.5
Power Source :
Electric
Pressure :
0.2mpa
Structure :
hose pump
Cable Length :
1.5mm
Outlet Size :
25.4mm
Voltage :
220v 380v
Power :
400w
motor :
AC MOTOR
product :
peristaltic hose pump
Brand :
Huiyu fluid
model :
JL350-1A
flow rate :
1.3-35Liter/min
power supply :
AC 220V ±20%
motor speed :
30 to 350 rpm, reversible
dimension(LxWxH) :
417X401X321 (mm)
Drive weight :
32 kg
Certification :
ce
Packaging Details :
industrial peristaltic hose pump
packed in polywood case with foam plastic
Port :
Beijing,Tianjin,Qingdao
Supply Ability :
100 Set/Sets per Week
Price :
$1,660.00 - $2,550.00/sets
Description

Product Description

industrial peristaltic hose pump

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Introduction
JL350-1A peristaltic pump is ideal for high flow rates fluids transfer, driven by the AC motor and the frequency converter control the speed.The pump delivers flow rates is less than 35 L/min. Through the transparent front cover, the running status of the pump head is visible. The speed, running direction and run/stop of the pump are controlled manually by membrane Keypad or automatically by external control interface. Its operation is simple and reliable.
Technical parameters
-Speed: 30 to 350 rpm, reversible
- Max flow rate:35liter/min
-Speed precision: 0.6 rpm
-Speed control: rotary encoder switch, acceptable external control and communication control
-Display: LED display
-Speed control signal input: 0-5V,0-10V,4-20mA
-Start and stop control signal input: switching control
-Direction control signal input: switching control
-Communication interface: RS485 and RS232
-Dimensions (L × W × H): 417×401×321 (mm)
-Power supply: AC 220V±20%
-Power consumption: < 400 W
-Operating condition: Temperature 0 to 40°C,
-Relative humidity < 80%
-IP rating: IP55
-Pump weight: 32 kg
Functions and features
- High-power pumps, and the maximum flow rates can reach 35L/min
- The structure of concave working surface and convex roller realize the tubing self-position function. It reduces abrasion and prolongs tubing life.
- Variable frequency speed control to AC motor with creeper gear
- Adjustable occlusion
- Strong drive
- Pump head operation is visible through transparent front cover

Technical Data Sheet
Drive Pump head Available tubing flow rate range (ml/min) weight(kg)
JL350J-1A KZ48/63 88# 1.3-15 32
92# 3-35

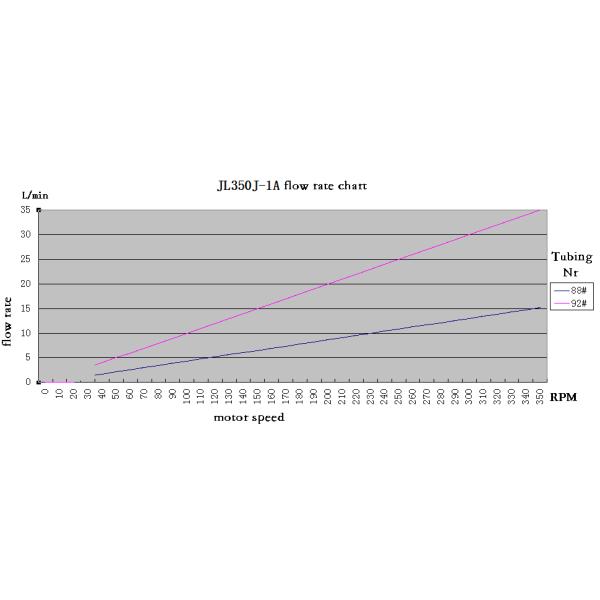

Flow rate chart

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

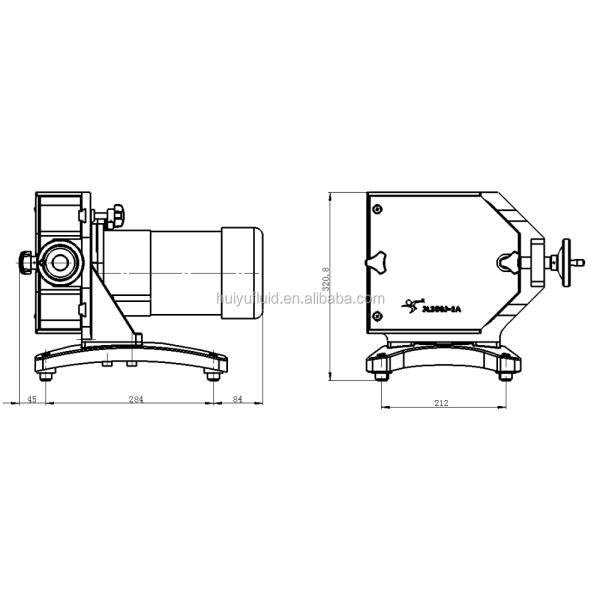

Mounting drawing

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

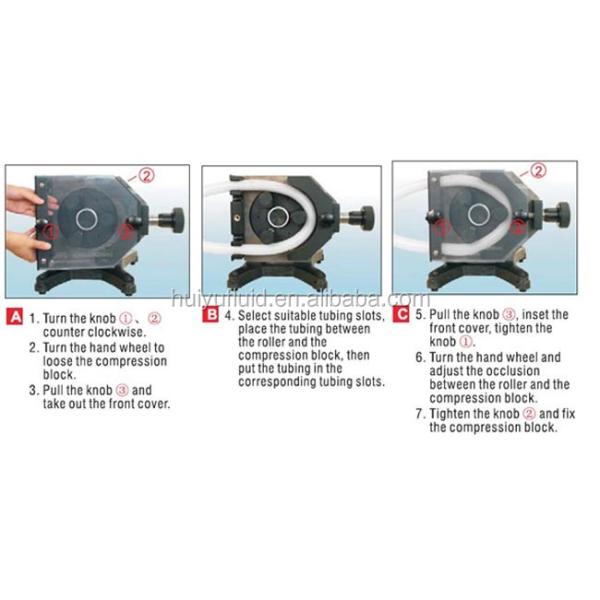

Tubing loading

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

OEM option

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Accessories

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

CE certificate

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
