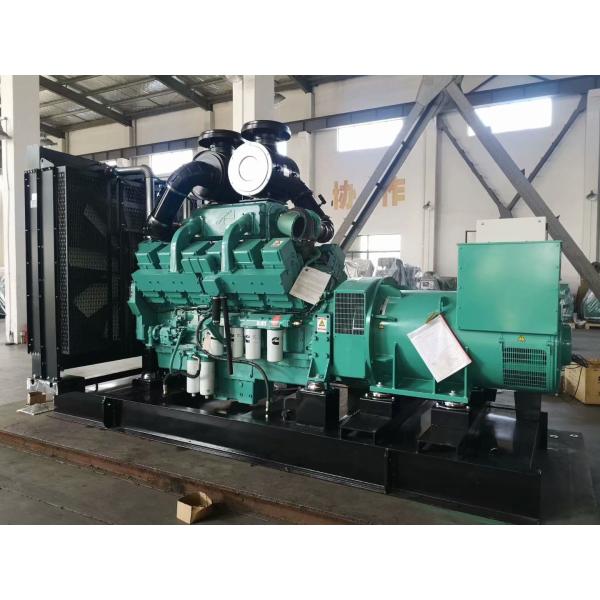

Water Cooled 60HZ Cummins Diesel Generator Set 800kva 640kw 70dB
Water Cooled 60HZ Cummins Diesel Generator Set 800kva 640kw 70dB
Specifications
Brand Name :
SHX
Model Number :
SCF-880
Certification :
ISO, CE, Soncap, EPA
Place of Origin :
China
MOQ :
1 set
Price :
USD 60000-80000USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets per Month
Delivery Time :
25 working days
Packaging Details :
Plyfilm or plywood
Engine :
KTA3-G2B cummins
Noise Level :
70dB in 7 meters
Fuel Tank :
8-10hours
Generator canopy :
CONTAINER/ SOUNDPROOF
Rated Voltage :
230V/380V/400V/440V
Alternator :
Stamford/Marathon/Leroy Somer
Description

50HZ 60HZ Cummins Brand 800kva 640kw Diesel Generator With Soundproof

prime 800kva Generator Set Specifications:

Gensets

Model

 Prime Power Standby Power
kW kVA kW kVA
RYL800C 640 800 704 880

1. 800kva cummins Generator Diesel

2. Cummins Engine:KTA38-G2B

3. prime Power: 800KVA/640KW

4. Cooling system:Closed cycle water-cooled with fan, water tank

5. Overall dimension (L×W×H) mm:4800*2200*2300

6. Bore×Stroke:159×159

7. Compression Ratio:16.5:1

8. displacement :38L

Engine Specification

Basic Features

· Model:KTA38-G2

· Brand/Origin: cummins

· Number of Cylinders: 6Cylinder arrangement: Vertical in-line

· Stroke No. Four stroke

· Rated Power kW:640kw

· Speed r/min: 1500

· Starting Method: DC24V

· Speed Governor : Electronic/Mechanical

· Aspiration: turbocharged

· Cooling : Closed Water- cooled

· Steady-state Speed Adjustable Rate: <3%(Electronic)<5%(Mechanical)

Alternator Features

Basic Features

· Brand: stamford

· Rated Power : 640kW/800KVA

· Numbers of Bearing : 1

· Insulation Grade: H

· Protection Grade: IP22

· Coil span: 2/3

· Winding type: 12

· Excitation : brushless

· efficiency :90.2%

· AVR

Electrical Features

· Steady-State Volt Adjustable Rate: ≤±1%

· Electromagnetic interference factor: TIF:50;THF: 2%

· Total harmonic LL/LN: 4%

· Power factor: 0.8(lag)

Product characteristics:

1. Our cooperate with famous diesel engine -Powered by famous CUMMINS engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Farrand, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Water Cooled 60HZ Cummins Diesel Generator Set 800kva 640kw 70dBWater Cooled 60HZ Cummins Diesel Generator Set 800kva 640kw 70dB
