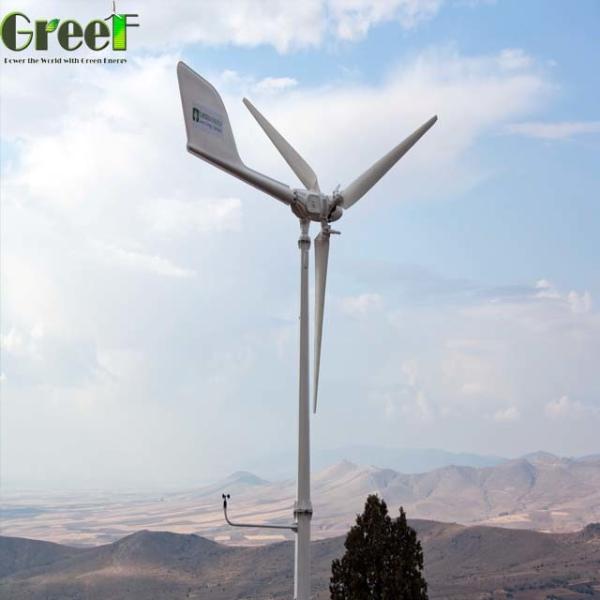

Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Grid Tie Magnet Pitch Control Wind Turbine Horizontal Axis
Specifications
Brand Name :
GREEF
Model Number :
AH-5KW
Certification :
CE
Place of Origin :
QINGDAO
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25 Units
Packaging Details :
Inner Foam + Plywooden casec
Description

Easy installation high efficiency 5kw horizontal wind turbine magnet price list windmill generator grid tie

Why choose AH-5KW wind turbine?

Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃～+50℃
Products Description

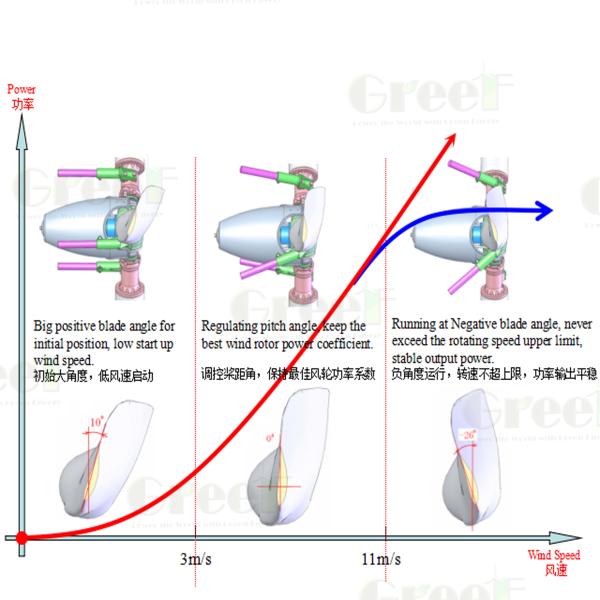

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands

New Energy Power Supply System at Communication Base Stations in Danish

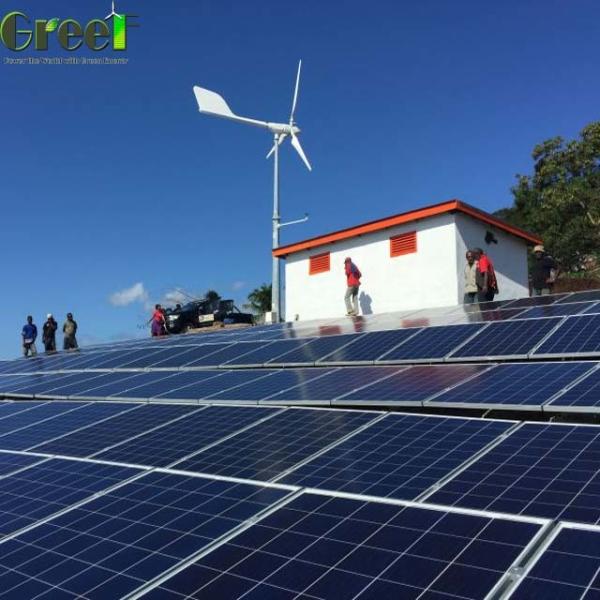

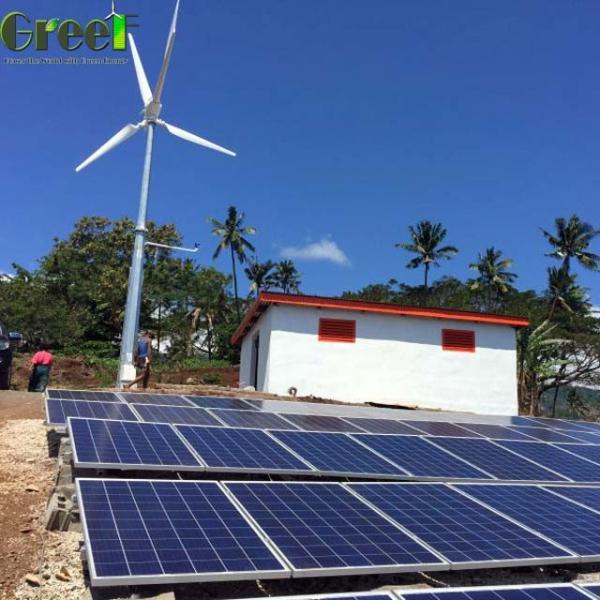

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
Systems
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
