Free Electricity Energy Permanent Magnet Generator 350rpm 1kw 6kw 10kw 12kw 400v
Free Electricity Energy Permanent Magnet Generator 350rpm 1kw 6kw 10kw 12kw 400v
Free Electricity Energy Permanent Magnet Generator 350rpm 1kw 6kw 10kw 12kw 400v
Free Electricity Energy Permanent Magnet Generator 350rpm 1kw 6kw 10kw 12kw 400v
Specifications
Brand Name :
GREEF
Model Number :
GDF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
400 sets per month
Delivery Time :
25 working days
Packaging Details :
Foam+plywooden case
Rated voltage :
12V / 24V / 48V
Generator type :
3 Phase AC Permanent-magnet,Three phase AC permanent magnet synchronous generator,1-3kw vertical axis wind turbine
Application :
Electricity Generation
Rated power :
300w-30kw
Type :
Wind Power Generator,50kw to 500KW permanent magnet alternator
Description

1kw 6kw 10kw 12kw 400v 350rpm Free Electricity Energy Permanent Magnet Generator

Advantages
Alternative Energy Generators
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.
Rated power 0.5--5000 kW
Rated rotate speed
 20--3000 rpm
Rated voltage 48--1140 Vac
Frequency 60/50 Hz
Number of Poles 24
Generator type 3phase AC Synchronous generator

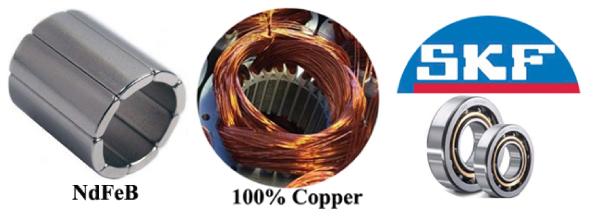

Magnet type NdFeB
Winding Method Y
Magnet temperature level Max.120℃
Winding temperature level Max.180℃
Effienciency >95%
Insulate Grade H
Insulating resistance 100Mohm Min(500Vdc)
Classification of degrees IP54
Generatror shell material Cast Iron
Winding material 100% Copper
Shaft material Steel
Iron Core Cold rolled silicon steel sheet
Bearing brand SKF
Cooling Method
Fan Cooling
Weight (N.W /G.W ) 132kg /152kg
Packing Size 870*470*570mm
Installation Horizontal

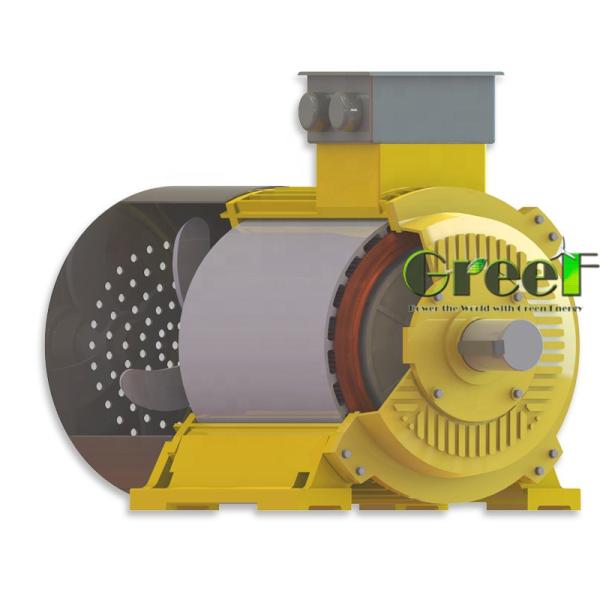

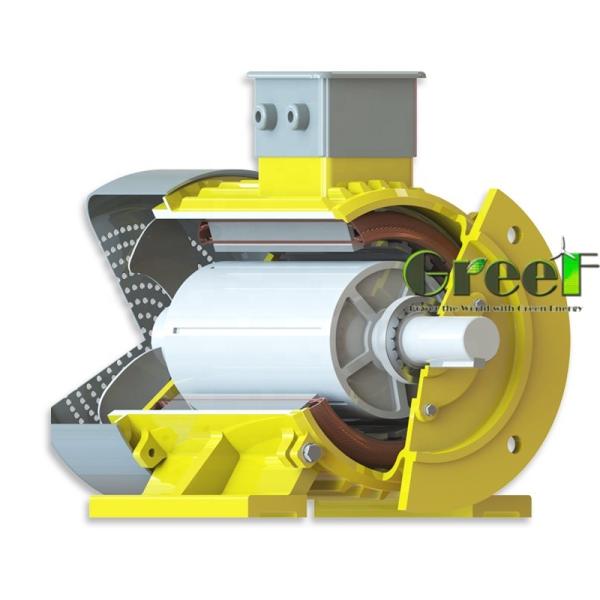

Product Description
Permanent Magnet Generators offer high efficiency energy conversion, particularly at partial load, and require no separate field excitation system. Our permanent magnet generators are lighter, more efficient, and require less assembly labor than competing designs.
Permanent Magnet Generators are used in a large number of applications such as Wind Turbines, Hydro Turbines, motors and others.
1
 Rare earth Nd-Fe-B permanent magnets
2 Low Speed
3
Direct Drive ,no use gear-box
4 SKF bearing
5 Power factor close to 1
6
Maintenance free , can be used in all environments .
7 Long life time >20years, could run at high speed 24 hours 365 days .
8
Customized : Voltage, Speed, Power, Frequency etc.
9
Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
10 H class insulation, vacuum pressure impregnation.
11 Excellent heat dissipation , also can add fan cooling

System Solution

GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements

Customer Photos
Packing & Delivery

1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

Or Shipping by air to your nearest airport

Or Shipping by DHL/FedEx/UPS/TNT to your door

If you have any requests in package and shipping , please contact us directly.

Buyer Reviews

Permanent Magnet Generators are 3 years warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
