Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Specifications
Place of Origin :
Fujian, China
Brand Name :
U-POLEMAG
Model Number :
N35-N52 (M.H.SH.UH.EH.AH)
Type :
Permanent
Composite :
Neodymium Magnet
Shape :
Ring
Application :
Industrial Magnet
Tolerance :
+/-0.05mm
Processing Service :
Moulding
Grade :
NdFeB
Delivery Time :
15-30 days
Product Name :
Ring Bonded Injection Neodymium Magnet
Main Material :
Bonded NdFeB
Size :
Custom magnet size
Surface Gauss :
As request
Coating :
Black Epoxy
Precise Tolerance :
+/-0.05mm
Magnetism direction :
8 poles 12 Poles 20 Poles Multi Poles
Working Temp. :
150 Celsius degree or request
Advantage :
Great Strength
Certification :
ISO9001, CE, TS16949, ROHS, etc
Packaging Details :
Inner Small Box + Carton + Pallet for Multi Poles Ring Bonded Injection Neodymium Magnet with Epoxy Resin Coating
Port :
SHANGHAI
Supply Ability :
2000 Metric Ton/Metric Tons per Year boned neodymium ring magnet
MOQ :
500 pieces
Price :
$3.75 - $5.99/pieces
Description
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor

Bonded NdFeB Magnets

Bonded Neodymium magnets are manufactured through the compression process. This process involves mixing neodymium powder with epoxy as a binder and pressing it into a die cavity with no magnetic field, thus making these magnets Isotropic. Pressed parts are then placed into the oven for curing. Compression bonded neodymium magnets are an excellent choice over other magnet types (sintered neodymium, sintered samarium cobalt, and hard ferrites) that have limits to some shapes that compression bonded magnets do not have. With their high energy product reaching up to 12 MGOe it makes them ideal for many applications requiring high magnetic strength and tight tolerances. Since no magnetic field is applied during the compression the finished product can be magnetized in any direction. Having epoxy as a binder in the manufacturing process for compression bonded magnets makes the magnets resistant to most industrial automotive fluids. With relative low tooling cost and quick turnaround compression bonded neodymium magnets are the choice for a wide variety of applications. The final product can be epoxy coated for durability and more resistant to corrosion.
Product Description
Product Name
Multi Poles Ring Bonded Injection Neodymium Magnet with Epoxy Resin Coating
Material
Bond NdFeB
Surface Gauss
As request
Size
Custom magnet size
Magnetization
Radial, Multi-poles
Coating
Black Epoxy
Performance
Br : 0.55-0.80 T
(BH)max: 44-92 KJ/M3(5.5-11.5 MGOe)
Working Temperature : 110-180 ℃
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor



1. Professional neodymium magnet manufacturer over 20 years.

2. Near US$2,000,000.00 Online Transactions.

3. Top 1 Alibaba Magnets Supplier.

4. Good price and high quality with REACH, ROHS Certificate,etc.

5. Long-term stability of magnetic properties.

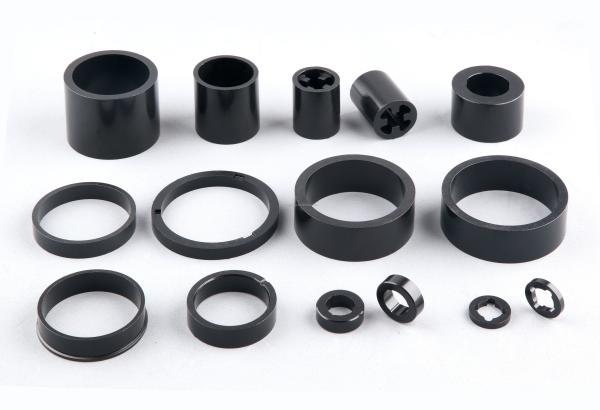

Bonded Neodymium Ring Magnet


Features:
1. High precision;
2. Excellent magnetic properties;
3. Stable working temperature;
4. Good corrosion-resistance and nice surface.
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Product Advantages

Bonded Neodymium Magnet

Bonded magnet can be produced in different shapes, sizes and grades depending on the end use application. Bonded magnet offers numerous benefits over other magnet technologies including higher coercivity BH max, wider tolerance on tolerances, increased design freedom, ease of handling during assembly operations, reduced weight compared to traditional magnetic components such as blocks or rings, ability to be shaped/molded into complex geometries with intricate surface patterns for improved functionality and it can be combined with bonded magnets in a single product.
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Application

Bonded Neodymium Ring Magnet

Bonded magnet is a kind of composite magnet which has the characteristics of both permanent magnet and binder material. Mainly used in office automation equipment, electrical machinery, audio-visual equipment, instrumentation, small motors and measuring machinery, mobile phones, CD-ROM, DVD-ROM drive motors, hard disk spindle motors HDD, other micro DC motors and automation instruments fields.
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Different Types Magnets are Available
Custom Neodymium Magnets – We can also custom manufacturer neodymium block magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project. U-POLEMAG has near 20 years of experience in manufacturing complex magnetic assemblies for more technical applications
Packing & Delivery
Custom Packing
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor


Regular Packing
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor

Inner Packing

* With foam inside to protect magnets
* With iron plate around for air shipment
* Suitable for air / sea / express shipping


Outer Packing

* WIth poly-bag for water-proof
* With clear label for detail of magnets
* With Packing strip for protect carton
Our Company
You are looking for a reliable magnets partner. You've come to the right place. No matter a small magnet or complex systems, our work is to collaborate with you to produce high-quality and cost-effective products. We've got the track record and expertise to make it happen. We sincerely look forward to starting a conversation
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
Customer feedback
Great Strength Multi Poles Ring Neodymium Magnet with Epoxy Resin Coating Motor Rotor
FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory. Welcome to visit us.

Q: How long is your delivery time?

A: 30-45 days for bulk order.

Q: Do you provide samples ?

A: Yes.

Q: What is your payment method ?

T/T, PayPal, Alibaba Trade Assurance, Western Union etc.
