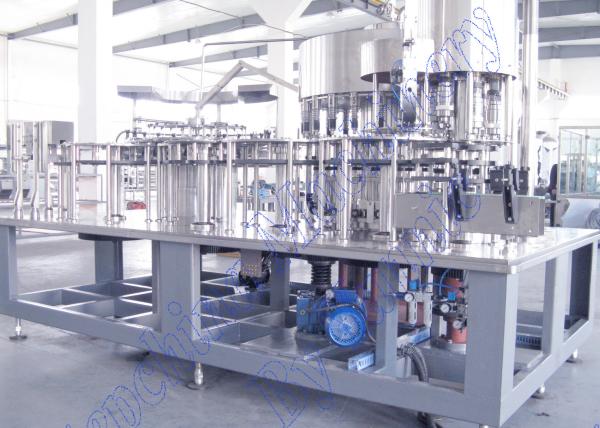

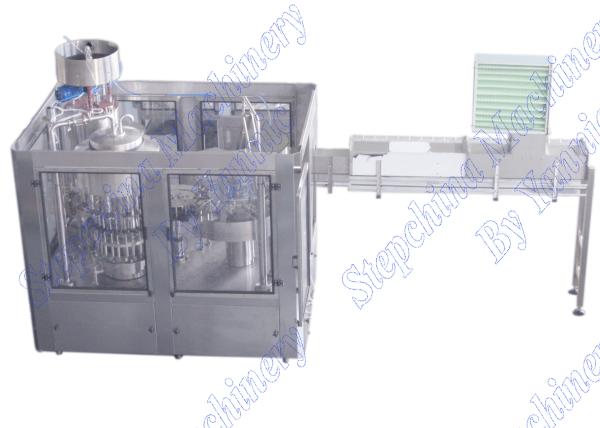

PET Bottle Filling Machine 12 Pieces of Filling Heads 5000 B/H for 500ml

Description:

• It is adopted that direct connection between top-chain conveyor and infeed screw.
• There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.
• High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
• By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

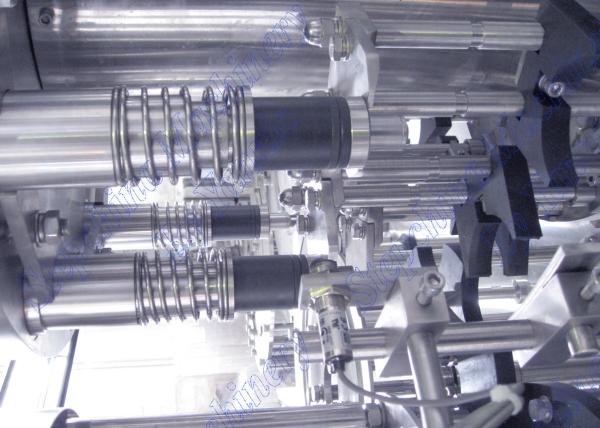

• Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
• High speed and large flow filling valve assures the high filling speed and exact fluid level.
• Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
• The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

Quick Detail:

Specifications:

• Bottle washing part. this model adopts star wheel for bottle transportation in the machine. all the parts are made of stainless steel.

• there is bottle guard board below the star wheel to avoid possible stuck during high speed rotary running. these guard board ensures high efficiency 5000 bottles per hour with 12 pieces of filling heads.

• Double sealing working on table avoid possible water leakage into bottom. sensors keep monitoring bottle and cap during production. Black nylon guide board ensures steady bottle rotary running between rinsing part, filling part and capping part.

Applications:

1. Bottled mineral water production.

2. Bottled purified water production.

3. PET bottled water package.

4. 330ml, 380ml, 450ml, 500ml, 600ml, 750ml,1000ml, 1500ml, 2000ml bottled water production.

Model list:

Competitive Advantage:

1. Based on Germen technology, more than 10 years of further technology development.

2. Reliable electric elements: Schneider, Siemens, Mitsubishi, Banner, Autonics. All famous brands,

easy to get spare parts in your country too.

3. Installation service and worker training service in client's factory.

4. Serious with every project, working from equipment design, production layout, water source analysis,

products transportation, marketing advice, installation etc.

5. warm service, waiting for your visiting in China.
