Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
Specifications
Brand Name :
Mingstar/StepChina
Model Number :
CGF14-12-5
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
50 sets per year
Delivery Time :
30 working days
Packaging Details :
wooden case
Bottle volume :
From 200 Ml To 2500ml
Bottle diameter :
50-90mm
Bottle height :
160-310mm
Operation :
Automatic
Transport Package :
Wood Case
HS Code :
8422301090
Description

Pure Water Bottlled Water Production with PET Bottle Filling Machine Controlled by PLC


Quick Detail:



Name


Water filling machine, water bottling machine, water filler, water filling equipment



Brand Name


StepChina


Capacity


5000B/H for 500ml


Material


Stainless steel 304


Function

 Bottle washing, water filling, bottle capping


Usage


Bottled water production

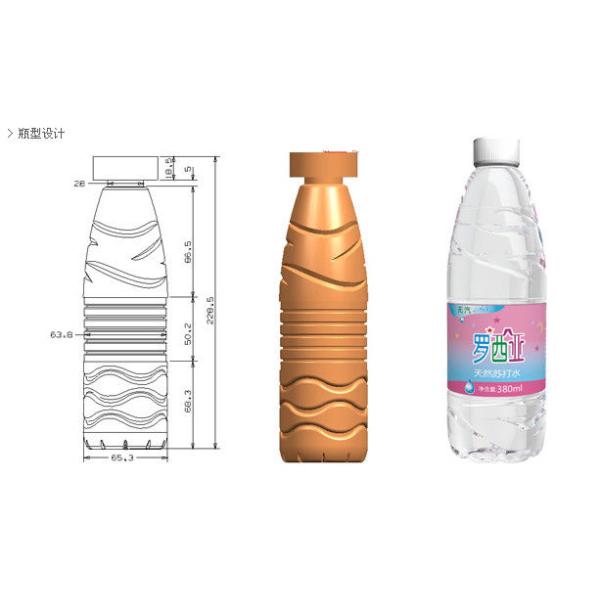

Application bottle design:
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap


Specifications:


Name


Rinsing, filling and capping machine


Model


CGF 14-12-5


Material


Stainless steel 304


Production capacity


5000B/H (500ml)


Detail specification


Number of rinsing heads


14


Number of filling heads


12


Number of capping heads


5


Applicable bottles


PET bottle,plastic bottle


Bottle diameter


Φ55-110mm


Bottle Height


186-310mm


Bottle Volume


200-2500 ml


Applicable caps


Plastic screw cap


Total power


1.5 Kw


Weight


2000 Kg



Description:
The water filling machine is mainly to wash PET/PC/PP/PE, plastic bottles; The washing way is jetting, the

structure is rotary. The machine can continuous automatic complete the processing: overturned bottle,

turn bottle, wash bottle, water dripping. The whole processes include two steps, washing and dripping. It is

a necessary machine for nature mineral water, pure water, spring water and other liquid filling production

line.
Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap

Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap

  • Bottle washing part. this model adopts star wheel for bottle transportation in the machine. all the parts are made of stainless steel.


Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap

  • there is bottle guard board below the star wheel to avoid possible stuck during high speed rotary running. these guard board ensures high efficiency 5000 bottles per hour with 12 pieces of filling heads.


Low Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap

  • the strength of capping head is adjustable. we shall adjust the strength to be best for client's cap and bottle during our whole line testing in our workshop.


Applications:
1. Bottled mineral water production.
2. Bottled purified water production.
3. PET bottled water package.
4. PET bottle oil package is also avaliable.


Competitive Advantage:

  • Superior performance
  • Longer service life
  • Time & effort saving
  • High operational accuracy
  • Corrosion resistance
  • Accurate functioning
  • Low noise generation
  • Dimensional accuracyLow Noise Accurate 3- In -1 Plastic Bottle Filling Machine With Screw Cap
