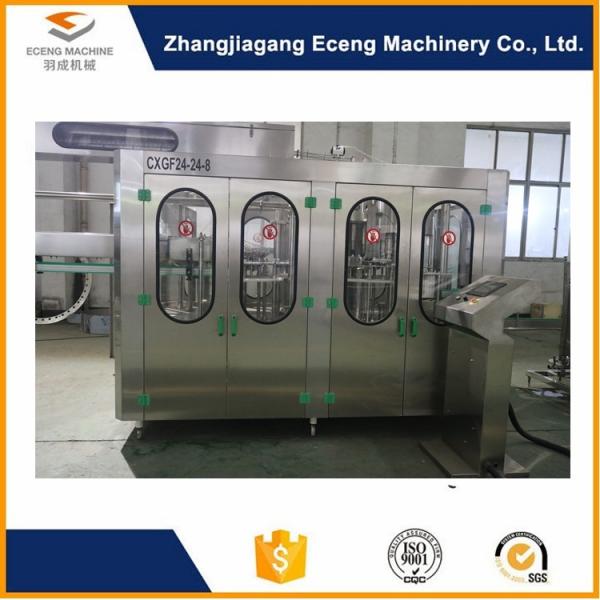

Air Knife Technology 5 Gallon Water Bottle Filling Machine With Dust - Proof
Air Knife Technology 5 Gallon Water Bottle Filling Machine With Dust - Proof
Specifications
Brand Name :
Eceng
Model Number :
XGF24-24-8
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
Capacity (500ml)BPH :
12000BPH
Filler valves :
24
Washing heads :
24
capping head :
8
Main power (KW) :
3KW
Weight :
4500KG
Description

Mineral water/pure water/juice/carbonated drink PET bottle washing filling and capping machine

This Wash-filling-capping 3-in-1beverage Machine is applied for beverage filling,integrating with washing,filling and sealing.It’s suitable for polyester bottle and plastic bottle filling of mineral water and purified water,non-gas wine drink and so on.Beverage Machinery can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more easiest. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

The device adopts the leading international advanced air knife technology with stable performance, high visibility, high drying effect, suitable for medium and high-speed production line: the air knife can rotate up and down ,right and left adjusting to dry areas and output level can be adjusted according to the size of air flow and the production capacity with simple operation .The device can apply for different type of bottles with no dust pollution caused by brush, maintenance-free, easy to clean the water from the bottles and porcelain bottles using is with the excellent special effects.

Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Capacity (500ml)BPH 3000-4000bph 6000bph 10000-12000bph
Filler valves 12 18 24
Washing heads 16 18 24
Capping heads 6 6 8
Suitable bottle shape PET circular or square PET circular or square PET circular or square
Bottle diameter (mm) ￠50-￠110 ￠50-￠110 ￠50-￠110
Bottle height (mm) 150-290 150-290 150-290
Compressed air pressure (MPa) 0.3-0.7 0.3-0.7 0.3-0.7
Washing medium Aseptic water Aseptic water Aseptic water
Washing water’s pressure (MPa) 0.25 0.25 0.25
Main power (KW) 2.2 2.2 3
Overall dimensions(mm) 2400*1650*2500 2600*1920*2550 3100*2300*2800
Weight (kg) 2500 3500 4500

Air Knife Technology 5 Gallon Water Bottle Filling Machine With Dust - ProofAir Knife Technology 5 Gallon Water Bottle Filling Machine With Dust - Proof
