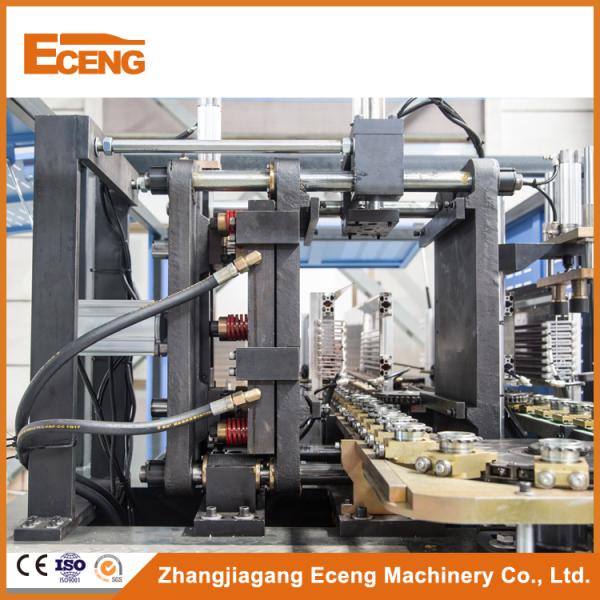

Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
2
PLC :
Mitsubishi
Cylinder :
SMC
capacity :
2000
warranty :
1year
color :
orange
Description

2L drinks water bottle blowing machine

Machine Model: YCQ-2L-2

Machine Featuers------Bottle molding machine

1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion,repairing and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock

Machine parts for 2L drinks water bottle blowing machine

Technical Parameter------bottle molding machine

Item YCQ-2L-2
Bottle type specification Cavity 2
Theory output 2000-2500
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 8.1KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton

Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles

Anti - Vibration Structure Automatic Blowing Machine To Make Plastic Bottles
