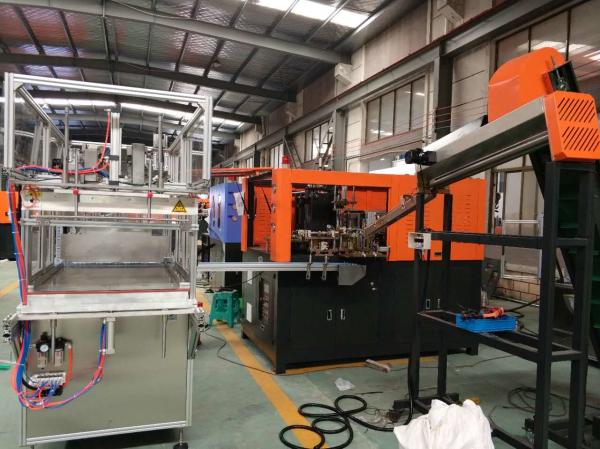

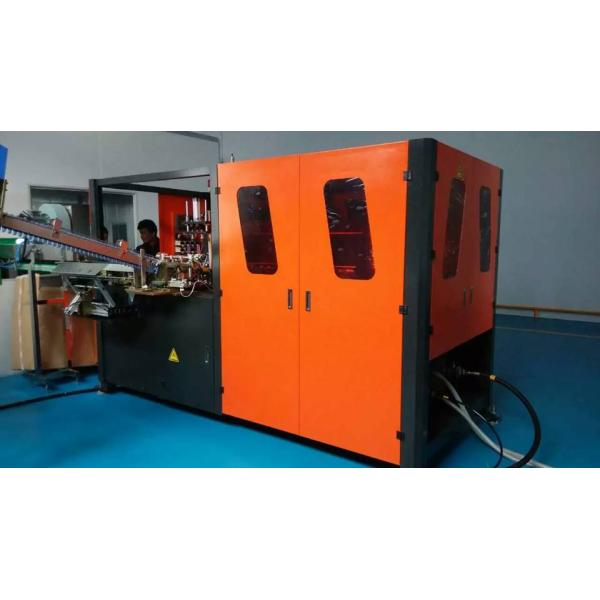

zhangjiagang beverage manufacturer plastic bottle making /blowing machinery

Product Feature

1. YCQ-2L-2 pet blowing machine With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2. Nontoxic conveyor belt to carry preforms

3. Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)

4. Easy to maintain

5. Infrared lamps

6. High safety. high speed with high efficiency.
7. Manual saving, one man is enough for operation the machine.
8. Stable performing with easy maintaining.
9. Imported PLC controlling and man-machine interface computer.
10. Japan Omron inspection sensor.

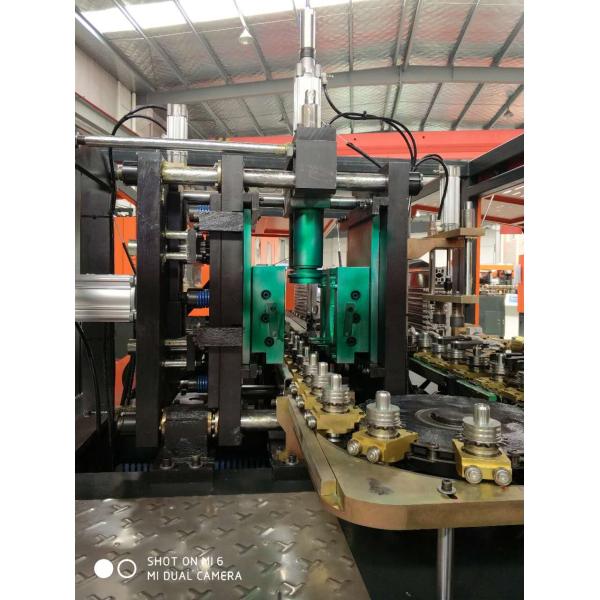

11. Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12. Power saving design that can increase your profits.
13. Segregate type air controlling system, which is designed for avoiding waste pollution.

General Specifications

1. Specification	Gathers the moldstrenghth ( KN)	160	The theory produces energy(BPH)		2000-2300
   	Mold traveling schedule(mm)	135	Electric power specification	Total power consumption(KW)	25
   	Pulls rises the traveling schedule(mm)	280		Thermal rating(KW)	24
   	Jar Spacing		Air pressure specification	Service pressure(kg/cm2)	8
   	Mold hole number(cavity)	2		Low pressure gas consumption(1tr/min)	1300
   Bottle specification	bottle maximum capacity(L)	0.7		Blows the bottle pressure(Kg/cm2)	30
   	Max. tooth department size(mm)	40		High-pressured gas consumption(1tr/min)	1500
   	Max.Bottle diameter	70	Machine weight	Machine size(M)	2.5*1.9*2.2
   	Max.Bottle body height(mm)	280		Machine weight(T)	2.3
