Features
1. Stable performance with Advanced PLC
2. Conveying performs automatically with conveyor.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4. High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheater with an automatic thermostatic apparatus.
5. Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6. Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7. Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8. Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9. Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10. Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11. Low rejection rete: less than 0.5 percent.
mode :YCQ-2L-4
Technical parameter
item | YCQ-2L-4 | |
Bottle type specification | cavity | 4 |
theory output (PCS/HR) | 3600-4200 | |
Max. volume (L) | 2L | |
Bottle mouth maximum overall diameter (mm) | 28-38mm | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
Light tube power | 1.25kw | |
Maximum heating power | 40kw | |
All electric machine installation | 43kw | |
Actual consumption | 21.5kw | |
Air pressure specification | Work pressure | 7-9kg/cM2 |
Low-pressure gas consumption | 1600Ltr/min | |
Blow bottle pressure | 25-35kg/cM2 | |
Higher -pressure gas consumption | 2500 Ltr/min | |
Frozen water specification | Work pressure | 5-6 kg/cM2 |
Temperature range | 10°C | |
Consumption | 8000kcal/hr | |
Frozen water flow | 88Ltr/min | |
Machine specification | Size of the machine | 4.0x1.6x1.9 (m) |
Weight of the machine | 3ton |

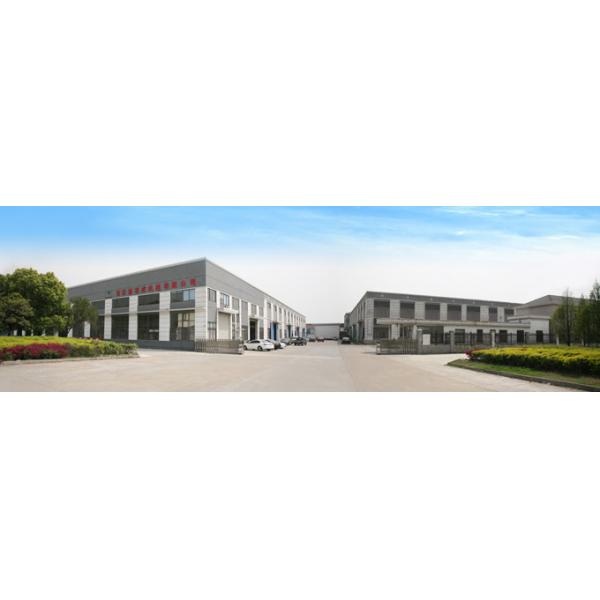

Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine jar, PE/PP/PVE/HDPE extruding blowing machine, injection machine and all kinds of moulds.
We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customer.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!
welcome to you visit our factory!!!
For more information, please feel free to contact with us at any time!
Contact person: Derrikc
Mob. /WhatsApp/Viber No.: 0086 15850390442
