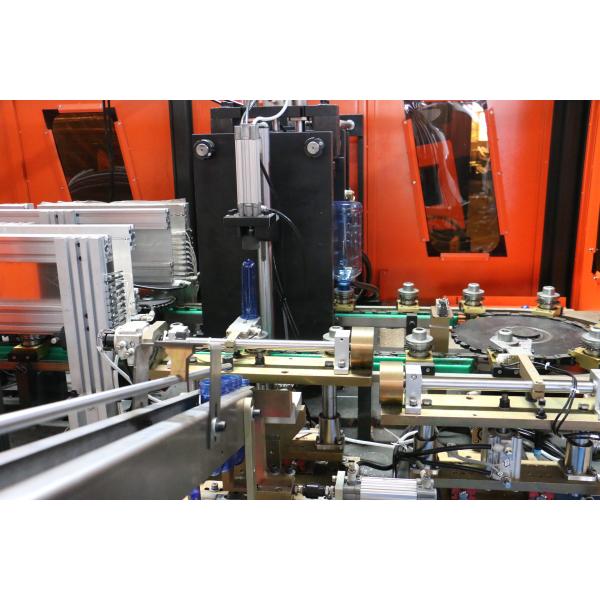

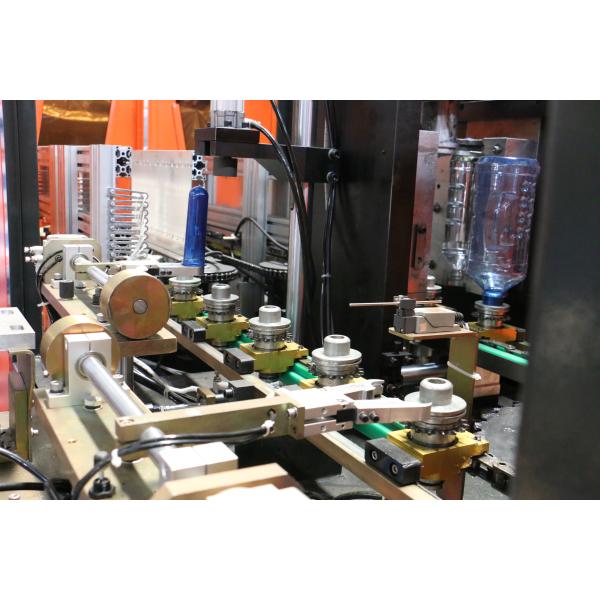

Smart Drinking Water Bottle Making Machine With Concentrated Heating System
Smart Drinking Water Bottle Making Machine With Concentrated Heating System
Specifications
Brand Name :
Eceng
Model Number :
YCQ—20L-1
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per Month
Delivery Time :
30 working days
Packaging Details :
Film pack
material :
preform
Description
Drinking Water Bottle Making Machine / bottle blowing machine
PET big Bottle Making Machine Features:

PET bottle making machine system: Create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
Concentrated heating system: Patent light box provides an even temperature, lamp distance 101mm rather than 240mm from others and saves power by more than 50%.
Stretching system: Use linear sliding track framework instead of linear bearing, which offers an outstanding improvement of stability.
Main transmission system: Adopt patent double strand roller chains technology, to assure the demands of stability and high speed.
Hydraulic mold clamping system replaces the traditional pneumatic clamping system, booster pressure from one side with 2 plates forming to assure the high clamping stability at a passing rate of 99.8%.

Item
PET big Bottle Making Machine Features:

PET bottle making machine system: Create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
Concentrated heating system: Patent light box provides an even temperature, lamp distance 101mm rather than 240mm from others and saves power by more than 50%.
Stretching system: Use linear sliding track framework instead of linear bearing, which offers an outstanding improvement of stability.
Main transmission system: Adopt patent double strand roller chains technology, to assure the demands of stability and high speed.
Hydraulic mold clamping system replaces the traditional pneumatic clamping system, booster pressure from one side with 2 plates forming to assure the high clamping stability at a passing rate of 99.8%.

Item YCQ-10L-1 YCQ-20L-1
Bottle type specification Cavity 1 1
Theory output 1000-1200 800-1000
Max.volume 10L 20L
Bottle mouth maximum overall diameter 150mm 150mm
Bottle biggest diameter 240mm 350mm
Bottle maximum height 450mm 550mm
Power specifications Light tube quantity 48pcs 48pcs
Light tube power 1.5KW 1.5KW
Maximum heating power 72KW 72KW
All electric machine installation 75KW 75KW
Actual consumption 37.5KW 37.5KW
Air pressure specification Work pressure 7-9kg/c㎡ 7-9kg/c㎡
Low-pressure gas consumption 1600L/min 1600L/min
Blow bottle pressure 25-35kg/c㎡ 25-35kg/c㎡
Higher -pressure gas consumption 2000-3000Ltr/min 2000-3000Ltr/min
Forzen water specification Work pressure 5-6kg/c㎡ 5-6kg/c㎡
Temperature range 10℃ 10℃
Consumption 8800kcal/hr 12000kcal/hr
Forzen water flow 88L/min 88L/min
Machine specification Size of the machine 2.7*1.5*1.7 5.2×2.0x2.0
Weight of the machine 3.6ton 6ton
YCQ-10L-1 YCQ-20L-1
Bottle type specification Cavity 1 1
Theory output 1000-1200 800-1000
Max.volume 10L 20L
Bottle mouth maximum overall diameter 150mm 150mm
Bottle biggest diameter 240mm 350mm
Bottle maximum height 450mm 550mm
Power specifications Light tube quantity 48pcs 48pcs
Light tube power 1.5KW 1.5KW
Maximum heating power 72KW 72KW
All electric machine installation 75KW 75KW
Actual consumption 37.5KW 37.5KW
Air pressure specification Work pressure 7-9kg/c㎡ 7-9kg/c㎡
Low-pressure gas consumption 1600L/min 1600L/min
Blow bottle pressure 25-35kg/c㎡ 25-35kg/c㎡
Higher -pressure gas consumption 2000-3000Ltr/min 2000-3000Ltr/min
Forzen water specification Work pressure 5-6kg/c㎡ 5-6kg/c㎡
Temperature range 10℃ 10℃
Consumption 8800kcal/hr 12000kcal/hr
Forzen water flow 88L/min 88L/min
Machine specification Size of the machine 2.7*1.5*1.7 5.2×2.0x2.0
Weight of the machine 3.6ton 6ton

Smart Drinking Water Bottle Making Machine With Concentrated Heating System

Smart Drinking Water Bottle Making Machine With Concentrated Heating System
