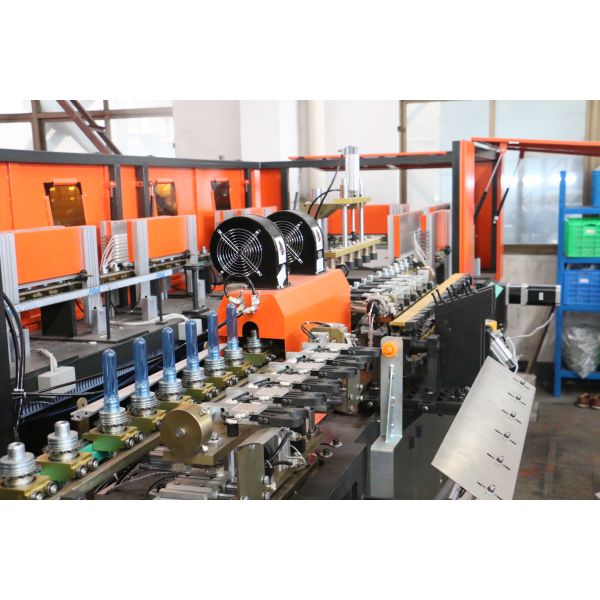

HP Air Recovery System Bottle Blow Molding Machine With Mold - Locking
HP Air Recovery System Bottle Blow Molding Machine With Mold - Locking
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-6
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
6
color :
orange
PLC :
Mitsubishi
capacity :
6
power :
48KW
Max volume :
2L
Description

hot sale full automatic blowing machine pet for bottle 500ml,550ml,600ml,750ml,1L,1.5L,2L

YCQ Series PET Bottle Blowing Machine Advantages:

Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.

HP Air Recovery System Bottle Blow Molding Machine With Mold - Locking

YCQ Optional items:

1) Exploded bottles ejection unit

During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.

2) HP air recovery system

After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

3) Oven and preform temperature detection system

Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.

Technical Parameter:

Note: the parameter above is based on the 17 grams of 500mL PET bottles. If the bottle conditions change, the corresponding parameter will change also. With the development and innovation of technology, the data above may be changed or improved, so it is for reference only. For precise and detailed data, please consult our technical department.

Bottle type specification

cavity

6

theory output (PCS/HR)

7000-8000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw

Actual consumption

30.1kw

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min

Frozen water specification

Work pressure

5-6 kg/cm2

Temperature range

10

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification

Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton

HP Air Recovery System Bottle Blow Molding Machine With Mold - Locking
