High Output Automatic Blowing Machine With Security Automatic Locking Apparatus
High Output Automatic Blowing Machine With Security Automatic Locking Apparatus
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 woorking days
Packaging Details :
Film pack
cavity :
2
PLC :
Mitsubishi
cylinder :
SMC
Color :
orange
capacity :
2400
power :
16KW
Description

technical parametre-- High quality plastic bottle making machine

Item YCQ-2L-2
Bottle type specification Cavity 2
Theory output 2400-2700
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Light tube power 0.75KW
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 8.1KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton

related introduction-- High quality plastic bottle making machine

1). Stable performance with advanced PLC.

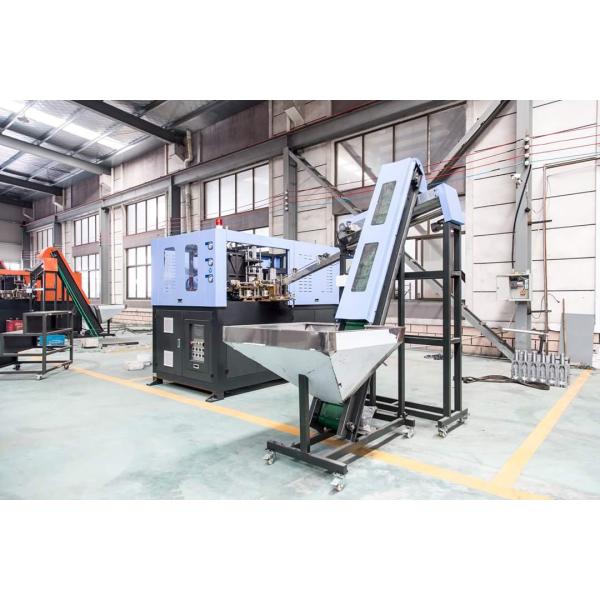

2). Automatic preform conveyer to save human cost.

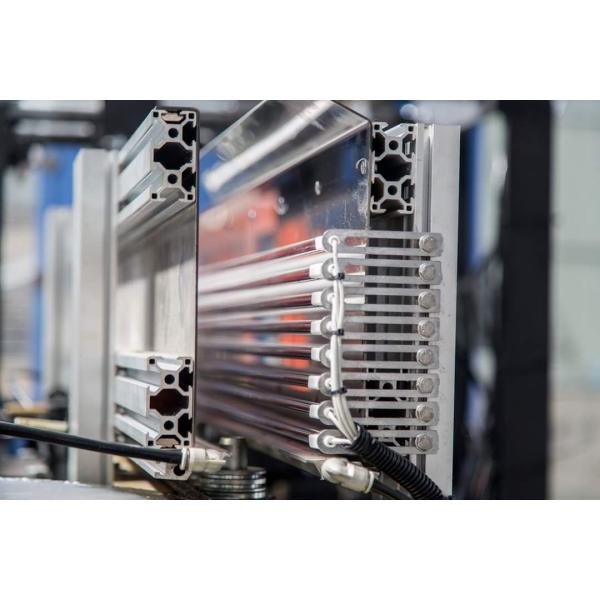

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

6). Introduce the FESTO air cylinder to avoid contamination and noise.

7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8). Strong clamping force with high pressure and double crank links to lock the mould.

9). Two ways of operating: automatic and manual.

10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.

12). Ideal cooling system make the finished bottles without any flaws.

13). Easy for you to install,test and start up.

14). Low rejection rate: less than 0.2 percent.
