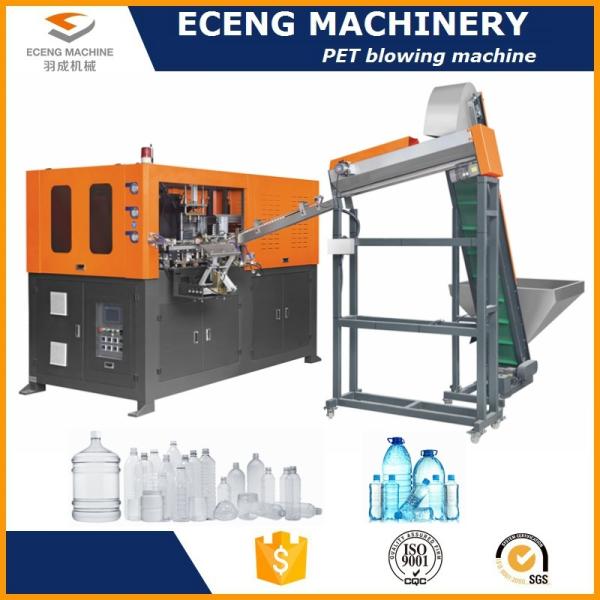

2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-2
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1 set
Price :
15000-25000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 working days
Packaging Details :
Film pack
cavity :
2
color :
orange
capacity :
2200
PLC :
Mitsubishi
cylinder :
SMC
Description

2 cavity automatic PET bottle blowing machine for 500ml-2500ml bottle

2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle

 Model YCQ-2L-2 YCQ-2L-3 YCQ-2L-4

Bottle type specification

 Cavity 2 3 4

Theory output

 2400-2700 3500-4000 4500-5000
Max.volume 2L 2L 2L

Bottle mouth maximum overall diameter

 80mm 28-38mm 28-38mm

Bottle biggest diameter

 100mm 100mm 100mm

Bottle maximum height

 330mm 330mm 330mm

Power specifications

Light tube quantity

 32pcs 32pcs 32pcs

Light tube power

 0.75KW 1.25KW 1.25KW

Maximum heating power

 24KW 40KW 40KW

All electric machine installation

 27KW 43KW 43KW

Actual consumption

 8.1KW 21.5KW 21.5KW

Air pressure specification

Work pressure

 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡

Low-pressure gas consumption

 1000L/min 1600L/min 1600L/min

Blow bottle pressure

 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡

Higher -pressure gas consumption

 1500Ltr/min 2500Ltr/min 3000Ltr/min

Forzen water specification

Work pressure

 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡

Temperature range

 10℃ 10℃ 10℃

Consumption

 5000kcal/hr 8000kcal/hr 8000kcal/hr

Forzen water flow

 30L/min 88L/min 88L/min

Machine specification

Size of the machine

 2.25x1.6x1.7 4.0x1.6x1.9 4.5x1.6x1.9

Weight of the machine

 2.5ton 3ton 3.5ton

Model YCQ-2L-2 YCQ-2L-3 YCQ-2L-4

Bottle type specification

 Cavity 2 3 4

Theory output

 2400-2700 3500-4000 4500-5000
Max.volume 2L 2L 2L

Bottle mouth maximum overall diameter

 80mm 28-38mm 28-38mm

Bottle biggest diameter

 100mm 100mm 100mm

Bottle maximum height

 330mm 330mm 330mm

Power specifications

Light tube quantity

 32pcs 32pcs 32pcs

Light tube power

 0.75KW 1.25KW 1.25KW

Maximum heating power

 24KW 40KW 40KW

All electric machine installation

 27KW 43KW 43KW

Actual consumption

 8.1KW 21.5KW 21.5KW

Air pressure specification

Work pressure

 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡

Low-pressure gas consumption

 1000L/min 1600L/min 1600L/min

Blow bottle pressure

 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡

Higher -pressure gas consumption

 1500Ltr/min 2500Ltr/min 3000Ltr/min

Forzen water specification

Work pressure

 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡

Temperature range

 10℃ 10℃ 10℃

Consumption

 5000kcal/hr 8000kcal/hr 8000kcal/hr

Forzen water flow

 30L/min 88L/min 88L/min

Machine specification

Size of the machine

 2.25x1.6x1.7 4.0x1.6x1.9 4.5x1.6x1.9

Weight of the machine

 2.5ton 3ton 3.5ton

2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle

Our Services

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.
