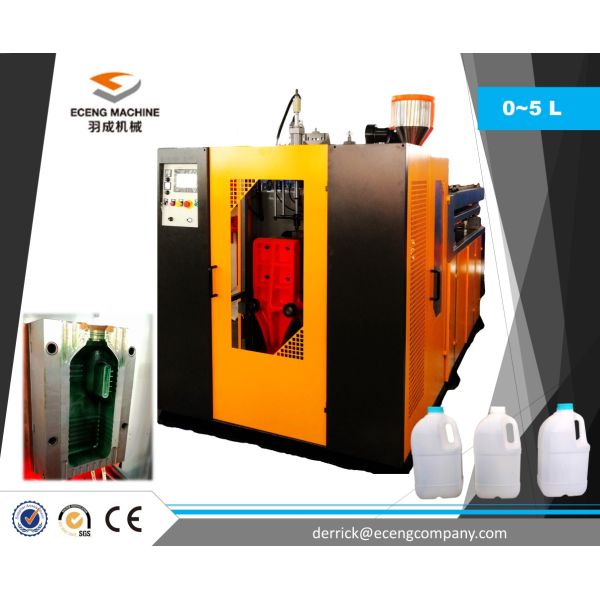

220V Fully Automatic Blow Moulding Machine With Intelligent Lubricant System
220V Fully Automatic Blow Moulding Machine With Intelligent Lubricant System
Specifications
Brand Name :
Eceng
Model Number :
YC-5L-D
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 workingdays
Delivery Time :
30 workingdays
Packaging Details :
Film pack
Touch Screen :
SIEMENS
Voltage :
220/380
Screw Diameter :
70mm
Max. product volume :
5L
warranty :
1 year
Clamping Force :
60KN
Description

full automatic extusion blow molding machine for HDPE barrel extruder machine

plastic extrusions blow molding machine

Plc +touch screen ,making the operation easy .Automatic malfunction alarm with self diagnosis,making the malfunction clear at a glance. Center input die head,eliminating the knit line completely and making it easy to change the material and color
Double linear rolling motion guider in moving,opening and closing mold,making the clamping force equally distributed,so the cut is smoother.

Control the hydraulic systerm with imported proportional valve,ensuring the action steady,accurate and energy saving.

High speed and effcient plasticizing system,mixing well and ensuring the produce purity

TECHNICAL PARAMETE
model YC-5L-D
Max. Product Volume (L) 5
Dry Cycle (pcs/h) 600*2
Screw Diameter (mm) 70
Screw L/D Ratio (L/D) 24~26
Screw Motor Power (Kw) 22
Screw Heating Capacity (Kw) 5~8.2
Number of Heating Zone 3
Output of HDPE (Kg/h) 70~85
Oil Pump Motor Power (Kw) 11
Clamping Force (Kn) 60
Mold Open Stroke (mm) 148~508
Size of Mold (W*H)mm 370*390
Max. Die Mouth Diameter (mm) 145
Die Heating Capacity (Kw) 3.5~4.3
Blowing Pressure (Mpa) 0.6~0.8
Air Consumption (M3/Min) 0.6
Cooling water Pressure (Mpa) 0.3
Water Consumption (L/Min) 60
Weight of Machine (T) 4.8
Size of Machine (L*W*H) (m) 3.5*2.1*2.1

Product Description

This machine is made up of plasticizing system,die head,clamping structrue,hydraulic system,electric system,pneumatic system and cooling system, Product is suitable for packaging of cosmetics,petroleum,chemicals,food productions and so on.

This machine is designed for producing high quality articles with small size.

Available material pe,pvc.pp,petg……

Max product volume up to5L

Equipped with 1 to 4 die head

Offer doublle layor,three layor ang visual stripe

“Robot “ and other accessories can be chosen by customers
