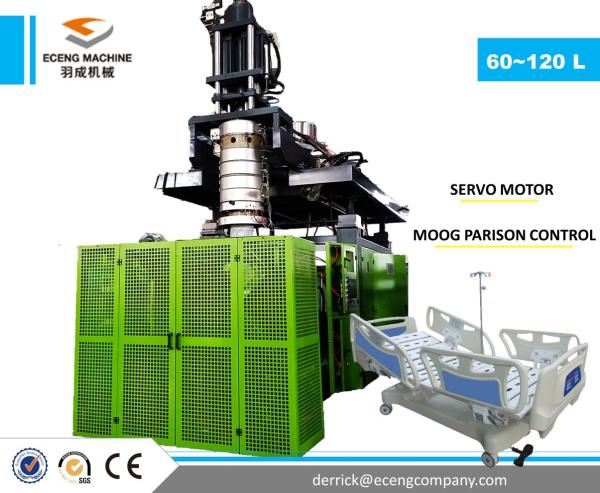

70 - 80 L High Output Extrusion Molding Machine With Electrical Clamping Systems
70 - 80 L High Output Extrusion Molding Machine With Electrical Clamping Systems
70 - 80 L High Output Extrusion Molding Machine With Electrical Clamping Systems
70 - 80 L High Output Extrusion Molding Machine With Electrical Clamping Systems
Specifications
Brand Name :
Eceng
Model Number :
YC
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
color :
orange
power :
100KW
warranty :
1year
weight :
23T
D/L :
28:1
Clamping force :
600KN
Description
70-80L type large hollow bottle automatic extrusion blow molding machine
Packaging & Delivery

Packaging Details

1. standard film packing
2. wooden case packing is available
3.one machine and some auxiliary equipments are in one container
4.check by clients before packing and shipment
5.clients' special packing request is available

Delivery Time

50 days after received deposit

1,Our Industry Advantage:

(1) PP/PE/PVC/PC/AS/PET/PET-G;

(2) Products of volume: 30ml-1000L;

(3) 1 year warranty;

(4) 20 years experience

(5) After-sales Service Provided: Engineers available to service machinery overseas

(6) All machine for Hydraulic system

(7) Many patent certificates

(8) More than 1000pcs different samples

(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.

(6) L/D: 23:1; 25:1; 28:1, 30:1

(7) Sales to more than 30 countries

(8) From 1-3 layers

Main characteristic

(1) Single process with single Die-head

(2) Max. 1000L

(3) Hydraulic system

(4) Diameter of product 280mm-1200mm

(5) 220-380V; 3 phase; 50-60HZ (Custom Made)

(6) 130mm Diameter of screw; L/D 28:1

(7) 1 Year warranty

Technical specification

water storage tank extrusion blow molding machine

System Item YC
Basic spec Applicable Raw Material HMWHDPE/HDPE
Max Container Capacity 1000L
Diameter of product 280mm-1200mm
Dimension 7500*4500*4500mm
Total Weight 23ton
Extrusion Main (driving) screw Φ150mm
Screw ratio 28:1
Barrel screw 38CRDOALA
MAX extruder output 500kg/h
Drive motor 100KW
Heating power 28KW
Clamping system MAX locking plate spacing 1200*1500mm
Mold open spacing 2300mm
Clamping force 600KN
mould thickness 1000mm
Die head Die head material 38CRDOALA
Accumulator volume 45L
Heating power 35kw
Temperature Regulation Sides 4pcs
Power Oil pump drive power 35kw
Total power 200kw
Average Power Consumption 140kw
Blowing Pressure 0.6Mpa
Cooling Water Power 0.2Mpa

5, Parts and Brand for your reference

Item Brand Country
Oil Pump YUKEN Japan
Control switch MITSUBISHI PLC Japan
The contactor Schneider Electric France
Reversing valve DUPLOMATIC Italy
Proportioning valve SMC Japan
oil valve YUKEN Japan
Touch screen PROFACE Japan
PLC MITSUBISHI Japan
Inverter INVT Taiwan
Temperature OMRON Japan
Valve ATOS Italy

70 - 80 L High Output Extrusion Molding Machine With Electrical Clamping Systems
