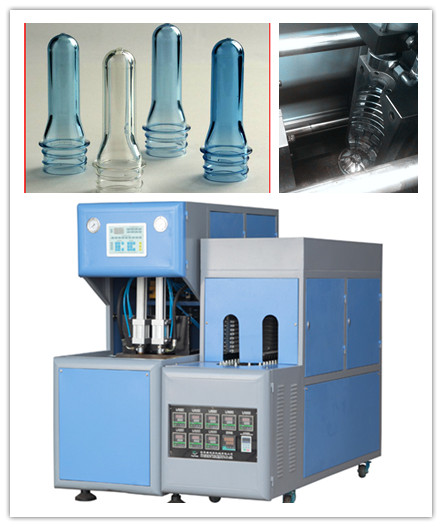

Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater
Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater
Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater
Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater
Specifications
Brand Name :
Eceng
Model Number :
YC-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
2
condition :
new
capacity :
800BPH
Color :
Blue
warranty :
1 year
weight :
800KG
Description

3 years no complaint ce certificate YC-2L-2 Semi-auto blowing molding machine

suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.

Specification:

TYPE
ITEM
MEASUREMENT
YC-2L-2 Combined type
YC-2L-2 Standard type
END PRODUCT
Material
/
PET/PP/PE/PC
PET/PP/PE/PC
Volume
L
0.05-2.5(2-cavity)
3-6(1-cavity)
0.05-2.5 (2-cavity)
3-6 (1-cavity)
Theoretical output
Pcs/h
0.05-2.5L/1700
3-6L/800
0.05-2.5L/850
3-6L/400
Max.length
mm
360
360
max.diameter
mm
180
180
MOULD PLATE
Max.mould plate
dimension(L×H)
mm
420×500
420×500
Max.mould thickness
mm
160-240
160-240
Clamping force
KN
90
90
Mould opening stroke (adjustable)
mm
200
200
AUXILARY
High pressure
Compressor M3/Mpa
KW
>=0.70/3.0×1set 22
>=0.7/3.0×2sets 22
Precision air filters
M3/Mpa
>=1.0/3.0×2pcs
>=1.0/3.0×2pcs
MAIN MACHINE ELECTRICITY
Power
KW
12
12
Voltae/Frequency
V/HZ
220-380/50-60
MACHINE SIZE
AND WEIGHT
Main body dimension(L×W×H)
M
1.45×0.6×1.75
1.45×0.6×1.75
Main body weight
T
0.6
0.6
Conveyor dimension(L*W*H)
M
1.40×0.62×1.25
1.40×0.62×1.25
Conveyor weight
T
0.22
0.22
SAFTY
Auto-emergency alarm
SAFETY INTER-LOCKING DEVICE
