PVC Semi Auto Blowing Machine Making 5 Gallon Carbonated Beverage Bottles
PVC Semi Auto Blowing Machine Making 5 Gallon Carbonated Beverage Bottles
Specifications
Brand Name :
Eceng
Model Number :
YC-20L-1
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
Max volume :
5 gallon
capacity :
120BPH
color :
Orange
Cylinder :
SMC
PLC :
Mitsubishi
warranty :
1 year
Description

Key word

Semi-automatic 5 gallon pet bottle blowing machine

  • 5 gallon pet bottle blowing machine
  • Pet bottle making machine
  • bottle making machine

Introductions

Introduction

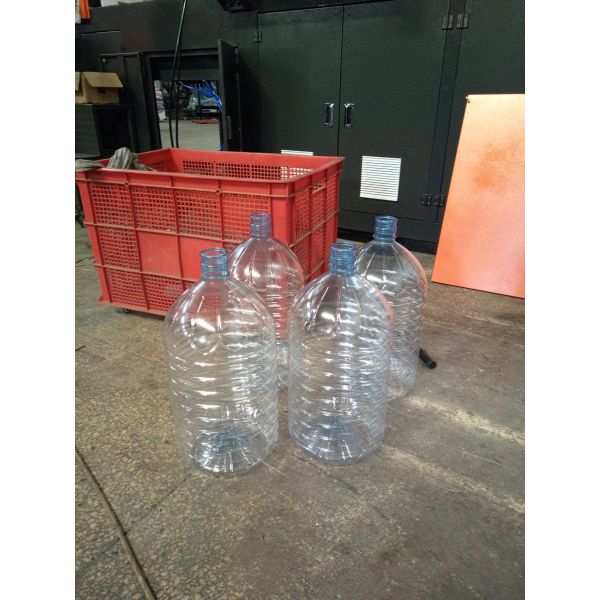

Our semi-automatic 5 gallon pet bottle blowing machine can produce plastic bottle for 5 gallon , according to the different bottle shape and diameter.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, adopt infrared oven to heat the perform, the perform rotated and heated equally. And the plastic bottles after blowing, are clean, and high quality.

A. Overview

1. Machine name Semi-automatic 5 gallon pet bottle blowing machine
2. Bottle volume 5 gallon
3. Bottle material PET,PP,PE,PC
4. Automation Semi-automatic
5. Producing capacity 100 bottles per hour -adjustable

B. Machine component

Machine name Semi-automatic 5 gallon pet bottle blowing machine
Machine Model SBB-100
Producing capacity Max. 100 bottles per hour
Cavity quantity 1
Bottle material Pet/PE/PVC
Bottle volume 5 Gallon
Bottle max height 450mm
Bottle max diameter 350mm
Max. mould plate dimension 520*600mm(L*H)
Max mould thickness 400mm
Clamping force 300KN
Mould opening stroke 330mm
Main machine power 30KW
Electricity supplying Customized
Main machine dimension 2650*1800*2150mm(L*W*H)
Main machine weight 2MT
Control Microcomputer
Electrical system DELIXI
Sensor, Cylineder China brand
Model type Tech data
Max. product volume(L/cav) 2 5.5 20 2
Max. preform neck size(mm) 100 150 200 100
Max. product diameter(mm) 180 200 400 180
Max. product height (mm) 300 400 600 300
Cavities 2 1 1 4
Die force (KN) 100 120 150 500
Die stroke (mm) 270 320 340 270
Max. mould size(mm) 390*345 390*350 420*500 460*345
Mould thickness Adjustable Mould thickness Adjustable
Mould spacing(mm Adjustable Adjustable 400 120
Max. pulling stroke(mm) 400 500 500 400
Operation pressure(Mpa) 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0
Operation air pressure consumption (1tr/min) 200 350 560 200
Blow pressure(Mpa) 1.2-2.8 1.2-2.8 1.2-2.8 1.2-2.8
Blow air pressure consumption (1tr/min) 300 300 650 300
Output(pcs/h 1000-1800 1000-1600 600-900 1000-1800
Machine size(LxWxH)(m) 1.46*0.58*1.8 1.56*0.7*1.9 2.18*0.77*1.96 1.46*0.58*1.8
Machine weight(KG) 650 700 1000 650
Temperature grade(rate) 8 8 8 8
Heating time(S) 90-200 90-200 90-200 90-200
Voltage(V) 220 or as your request 220 or as your request 220 220 or as your request
Frequency(HZ) 50/60 50/60 50/60 50/60
Total power(KW) 16 16 15-40 16
Oven Size (LxWxH) 1.35*0.55*1.15 1.45*0.65*1.15 2.37*0.68*1.65 1.35*0.55*1.15
Oven weight (KG) 300 330 380

300
