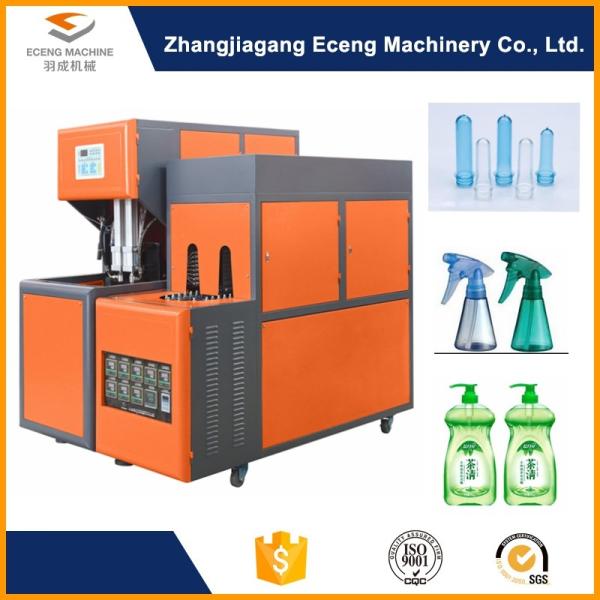

12KW 800 BPH Semi Auto Blowing Machine , Blow Moulding Machine For Pet Bottle
12KW 800 BPH Semi Auto Blowing Machine , Blow Moulding Machine For Pet Bottle
Specifications
Brand Name :
Eceng
Model Number :
YC-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 working days
Packaging Details :
Film pack
cavity :
2
power :
12KW
capacity :
800BPH
usage :
plastic bottle
Max volume :
2L
Description

semi automatic low cost PET bottle stretch blow molding machine 100ml-2L 2/4 cavity

YC-2L series designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. YC-2L-2 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles , especially oil bottles with handles.

Technology advantage:

Special design,high rigid compound die structure

Wide adaptability, suitable for every type mould thickness

Adjust convenience

No mould rolling out

More energy conservation,no need much air supply

High burnish principal axis, with very precise polishing, light action and low noise.

Short mould stroke,quick action

All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%

Hig dead-weigh, ensure the steady during the opeartion

12KW 800 BPH Semi Auto Blowing Machine , Blow Moulding Machine For Pet Bottle

Parameters:

Main machine Model type YC-2L-2 YC-2L-4
Product Spec Max. product volume(L/cav) 2 2
Max. preform neck size(mm) 100 100
Max. product diameter(mm) 180 180
Max. product height (mm) 300 300
Cavities 2 4
Blow molding part Die force (KN) 100 100
Die stroke (mm) 270 270
Max. mould size(mm) 390*345 390*345
Mould thickness Adjustable Adjustable
Mould spacing(mm) Adjustable Adjustable
Max. pulling stroke(mm) 400 400
Operation pressure(Mpa) 0.8-1.0 0.8-1.0
Operation air pressure consumption
(1tr/min)		 200 200
Blow pressure(Mpa) 1.2-2.8 1.2-2.8
Blow air pressure consumption (1tr/min) 300 300
Theory Output(pcs/h) 800-1000(500ml) 2600-2800(500ml)
Machine size(LxWxH)(m) 1.46*0.58*1.8 2.0*2.0*2.3
Machine weight(KG) 650 1000
Oven Temperature grade(rate) 8 8
Heating time(S) 90-200 90-200
Voltage(V) 220 or as your request 220 or as your request
Frequency(HZ) 50/60 50/60
Total power(KW) 16 16
Oven Size (LxWxH) 1.7*0.55*1.15 /
Oven weight (KG) 300 /

12KW 800 BPH Semi Auto Blowing Machine , Blow Moulding Machine For Pet Bottle12KW 800 BPH Semi Auto Blowing Machine , Blow Moulding Machine For Pet Bottle
