Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader
Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader
Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader
Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader
Specifications
Brand Name :
Eceng
Model Number :
YC-2L-4
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1 set
Price :
5000-10000USD Per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
25working days
Packaging Details :
Film
cavity :
4
capacity :
2400BPH
Cylinder :
SMC
PLC :
Mitsubishi
weight :
1Ton
Description

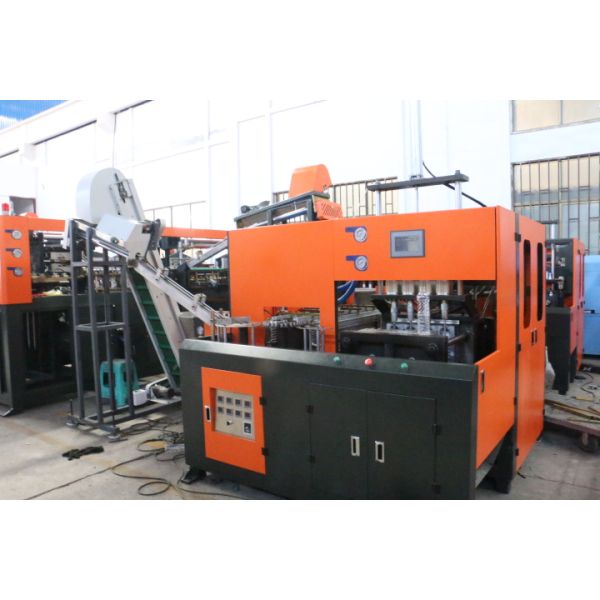

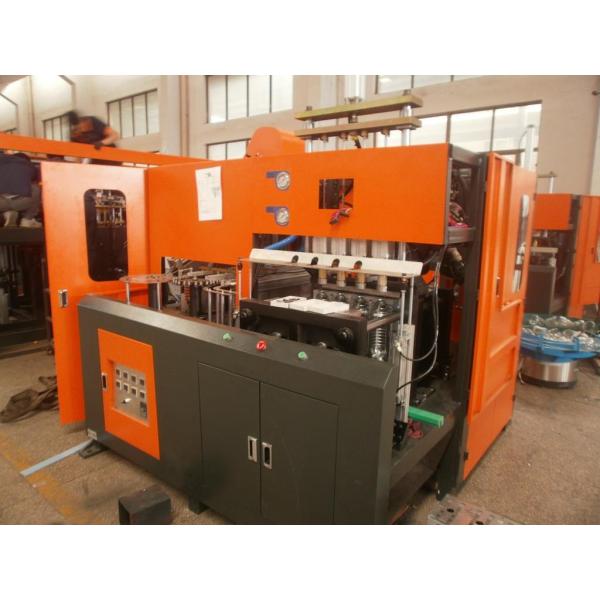

YC-2L-4 semi auto utomaticwater tank blow molding machine with auto loader

Semi-automatic blow moulding machine

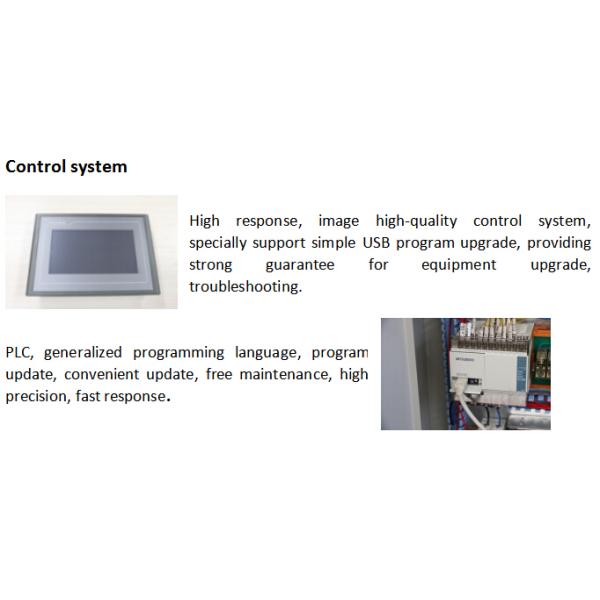

l Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the

timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.

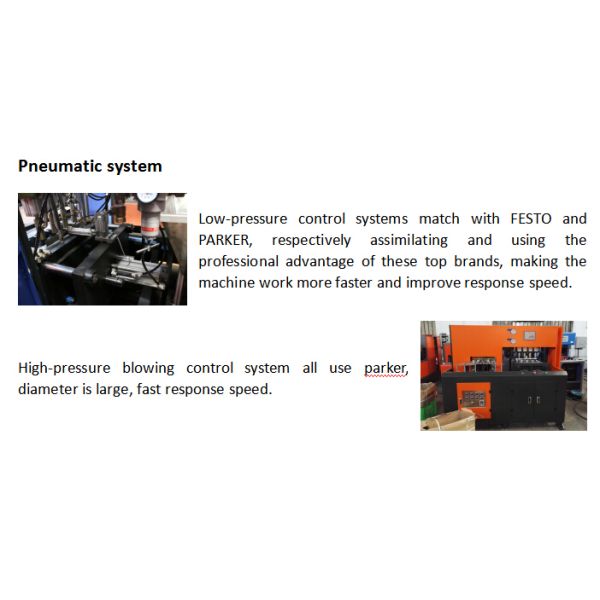

l High responsiveness pneumatic components,action timely and precisely

l Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation

l Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Main machine (blower + oven) Model type Tech data
Product Spec Max. product volume(L/cav) 2L
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 4
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 2600-2800(500ml bottle)
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG) 300

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic LoaderEasy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

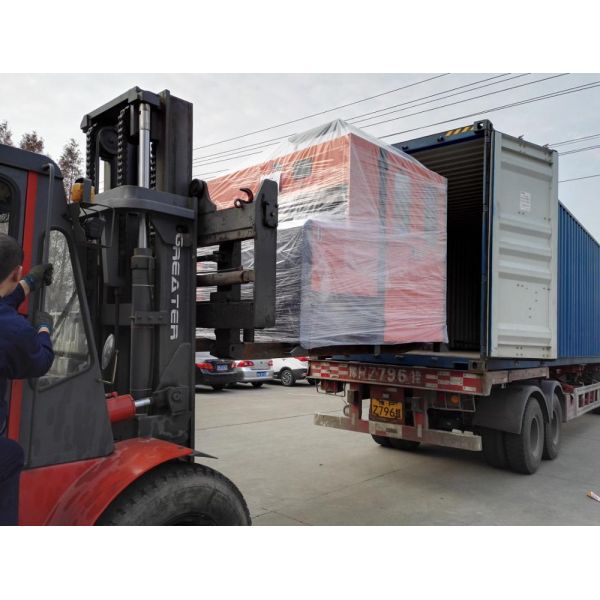

Packaging & Shipping

packed in wooden cases or film according to the requirement of customers Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Our Services

After sales service

1) Free charge for mould design

2) Free charge to provide spare parts for one year

3) Engineers available to install and test machine overseas

4) 1 year warranty and lifetime maintenance

Company Information

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

FAQ

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

If you are interested in this model or require this machine , please feel free to send me inquiry , I will provide detailed information for you .
