400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
Specifications
Brand Name :
Eceng
Model Number :
YC-5L-1
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1set
Price :
2000-5000USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
10working days
Packaging Details :
Film pack
Cavity :
1
suitable volume :
2.5L-5L
Max volume :
5L
capacity :
400-500
electric parts :
Omran
Description

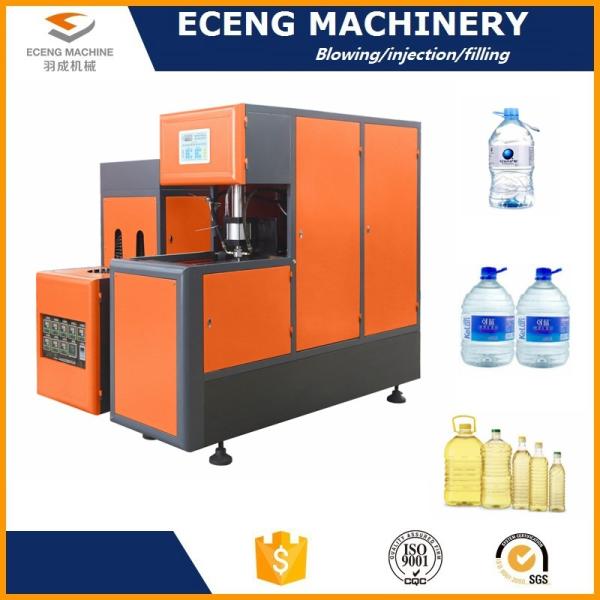

5L oil plastic pet bottle single cavity blow molding machine

YC-5L-1 designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. YC-5L-1 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.

Features
1. Produce bottle from 0.1L to 5L
2. Output capacity up to 400 for 5L using single-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10.Waste rate of finished bottle is less than 0.2%.

400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control

Main machine Model type YC-2L-2 YC-5L-1 YC-5L-2 YC-20L-1

Product Spec

Max. product volume(L/cav)

 2L 5L 5L 20L

Max. preform neck size(mm)

 100 150 130 200

Max. product diameter(mm)

 180 200 200 400

Max. product height (mm)

 300 400 400 600

Cavities

 2 1 2 1

Blow molding part

Die force (KN)

 100 120 150 150

Die stroke (mm)

 270 320 300 340

Max. mould size(mm)

 390*345 390*350 390*530 420*500

Mould thickness

 Adjustable Adjustable Adjustable adjustable

Mould spacing(mm)

 Adjustable 400 400

Max. pulling stroke(mm)

 400 500 500 500

Operation pressure(Mpa)

 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200 350 350 560

Blow pressure(Mpa)

 1.2-2.8 1.2-2.8 1.2-2.8 1.2-2.8

Blow air pressure consumption (1tr/min)

 300 300 360 650

Output(pcs/h)

 800 300 500-600 150

Machine size(LxWxH)(m)

 1.46*0.58*1.8 1.56*0.7*1.9 1.7*0.85*2.1 2.18*0.77*1.96

Machine weight(KG)

 650 700 800 1000

Oven

Temperature grade(rate)

 8 8 8 8

Heating time(S)

 90-200 90-200 90-200 90-200

Voltage(V)

 220 or as your request 220 or as your request 220 220
Frequency(HZ), 50/60 50/60 50/60 50/60

Total power(KW)

 16 16 16 15-40

Oven Size (LxWxH)

 1.35*0.55*1.15 1.45*0.65*1.15 1.45*0.65*1.15 2.37*0.68*1.65

Oven weight (KG)

 300 330 330 380

400 - 500 Pcs / H Pet Stretch Blow Machine With Independent Temperature Control
