Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
Specifications
Brand Name :
Eceng
Model Number :
YC-2L-4
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
5000-1000USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30working days
Packaging Details :
Film pack
Cavity :
4
Cylinder :
SMC
Valve :
Festo
capacity :
2400BPH
PLC :
Mitsubishi
Description

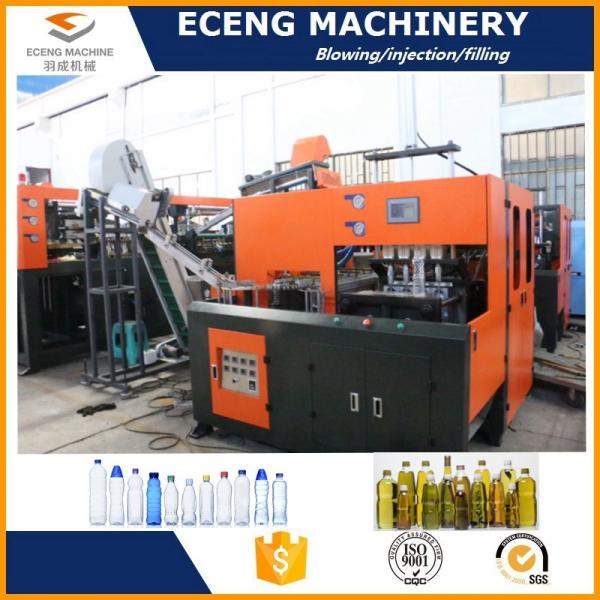

PET Plastic Processed and air pressure blowing Blow Moulding Type pet bottle making machine

designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Equipped with SMC cylinder, siemens PLC, Omran electric, fast and stable .Only one person without special training operates it more easily and more safely. YC-2L-4 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles , capacity reach 2400BPH

Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System

Main machine Model type YC-2L-2 YC-5L-1 YC-5L-2 YC-20L-1

Product Spec

Max. product volume(L/cav)

 2L 5L 5L 20L

Max. preform neck size(mm)

 100 150 130 200

Max. product diameter(mm)

 180 200 200 400

Max. product height (mm)

 300 400 400 600

Cavities

 2 1 2 1

Blow molding part

Die force (KN)

 100 120 150 150

Die stroke (mm)

 270 320 300 340

Max. mould size(mm)

 390*345 390*350 390*530 420*500

Mould thickness

 Adjustable Adjustable Adjustable adjustable

Mould spacing(mm)

 Adjustable 400 400

Max. pulling stroke(mm)

 400 500 500 500

Operation pressure(Mpa)

 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200 350 350 560

Blow pressure(Mpa)

 1.2-2.8 1.2-2.8 1.2-2.8 1.2-2.8

Blow air pressure consumption (1tr/min)

 300 300 360 650

Output(pcs/h)

 800 300 500-600 150

Machine size(LxWxH)(m)

 1.46*0.58*1.8 1.56*0.7*1.9 1.7*0.85*2.1 2.18*0.77*1.96

Machine weight(KG)

 650 700 800 1000

Oven

Temperature grade(rate)

 8 8 8 8

Heating time(S)

 90-200 90-200 90-200 90-200

Voltage(V)

 220 or as your request 220 or as your request 220 220
Frequency(HZ), 50/60 50/60 50/60 50/60

Total power(KW)

 16 16 16 15-40

Oven Size (LxWxH)

 1.35*0.55*1.15 1.45*0.65*1.15 1.45*0.65*1.15 2.37*0.68*1.65

Oven weight (KG)

 300 330 330 380

Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System

Our Services

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.

Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System
