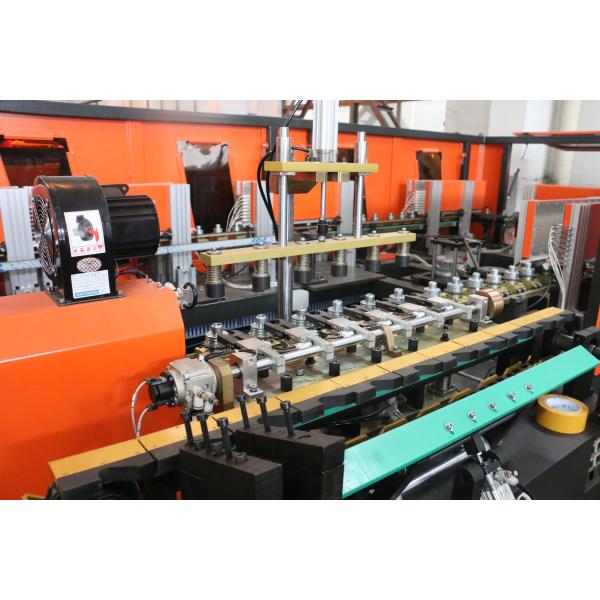

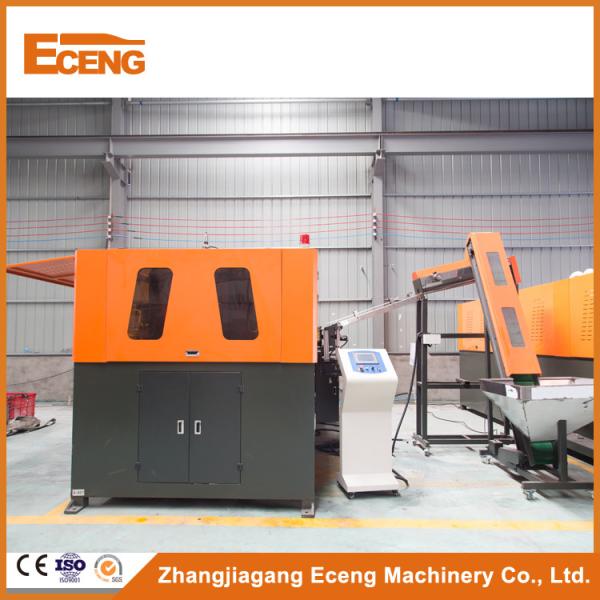

300ml / 500ml Fully Automatic Pet Bottle Blowing Machine With 7000 PCS / H
300ml / 500ml Fully Automatic Pet Bottle Blowing Machine With 7000 PCS / H
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-6
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
6
weight :
4 Ton
Warranty :
1 year
Dimension :
6.5*1.5*1.9M
Touch screen :
Hitech
Valve :
SMC
Description

300ml 500ml 1L Fully Automatic

Stretch Plastic Bottle Blow Molding

Machine PET Preform Blowing

What is technical parameter of our bottle cap making machine?

item YCQ-2L-6

Bottle type specification

 cavity 6
theory output (PCS/HR) 6000-7000
Max. volume (L) 2L
Bottle mouth maximum overall diameter (mm) 28-38mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Power specifications

 Light tube quantity 32pcs
Light tube power 1.25kw
Maximum heating power 40kw
All electric machine installation 43kw

Air pressure specification

 Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 4000 Ltr/min

Frozen water specification

 Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 8000kcal/hr
Frozen water flow 88Ltr/min

Machine specification

 Size of the machine 6.5x1.5x1.9 (m)
Weight of the machine

4ton

What is the parts of our bottle cap making machine?

machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN

What is the feature for our bottle making machine?

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank links to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.
