High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
Specifications
Brand Name :
Eceng
Model Number :
YCQ—2L-6
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1set
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
6
PLC :
Mitsubishi
Cylinder :
SMC
Electric parts :
Schneider
color :
Orange
capacity :
6000BPH
Description

Pet Plastic Bottle Blowing Machine And Water

FillingMachine

Main features:

Description

PET bottle blow molding machine is used to blow bottles from PET perform which can be bought directly from the market.

We will help to design the bottle shape basing on clients’ requirement before making bottle mould. We will suggest the preform weight basing on the bottle type.

Application: Food, oil, carbonated drinks, mineral water, alcohol, medicine, chemical etc;

Characteristics:

Can be connected with filling machine directly by air conveyor;

Linear construction transports preform for heating and bottle forming;

Upgrade production capacity;

Upgrade power efficiency;

Simplified operation by MMI control panel;

Modular design facilitates maintenance;

Save investment and enhance capacity;

Structure is compact;

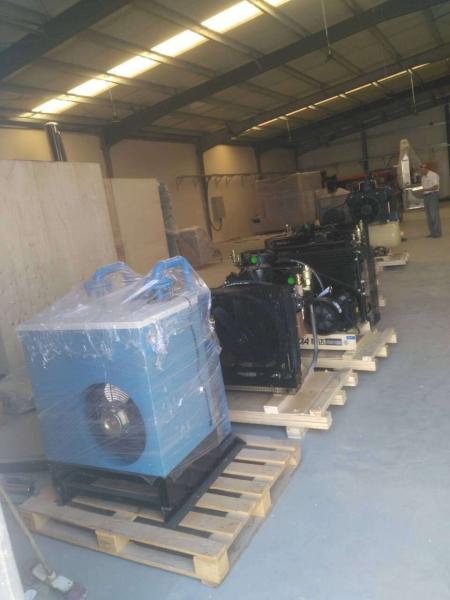

Auxiliary machines will be needed:

1, HP air system: it is mainly used to blow bottles;

2, LP air system: it is mainly used to control the mechanical movements;

High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine

Bottle forming chart

High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine

Machine types:

Type A: 2 cavity blowing machine; there are two bottles out of the bottle mould; the capacity will around 1800-2000BPH;

Type B: 4 cavity blowing machine; there are four bottles out of the bottle mould; the capacity will around 3800-4000BPH

Type C: 6 cavity blowing machine; there are six bottles out of the bottle mould; the capacity will around 5800-6000BPH

keywords: plastic bottle making machine


Item YCQ-2L-2 YCQ-2L-4 YCQ-2L-6 YCQ-2L-8
Cavity 2 4 6 8
Theory output 2000-2700 4000-5000 6000-7200 8500-9000
Max.volume 2L 2L 2L 2L
Bottle mouth maximum overall diameter 80mm 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm 330mm
Light tube quantity 16pcs 40pcs 64pcs 32pcs
Light tube power 1.5KW 1.5KW 1.5KW 1.5KW
Maximum heating power 24KW 40KW 80KW 80KW
All electric machine installation 26KW 60KW 85KW 85KW
Actual consumption 19KW 30KW 40KW 40KW
Work pressure 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡ 7-9kg/c㎡
Low-pressure gas consumption 1000L/min 1600L/min 1600L/min 1600L/min
Blow bottle pressure 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡ 25-35kg/c㎡
Higher -pressure gas consumption 1500Ltr/min 3000Ltr/min 4000Ltr/min 4800Ltr/min
Work pressure 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡ 5-6 kg/c㎡
Temperature range 10℃ 10℃ 10℃ 10℃
Consumption 5000kcal/hr 8000kcal/hr 8000kcal/hr 12000kcal/hr
Forzen water flow 30L/min 88L/min 88L/min 88L/min
Size of the machine 2.5*1.6*1.7 m 4.5*2.0*2.3 m 6.5*2.0*1.9 m 6.7x2.0x2.3m
Weight of the machine 2.0ton 4.0ton 5.5ton 6.0ton

High Pressure Automatic Blowing Machine , Drinking Water Bottle Making Machine
