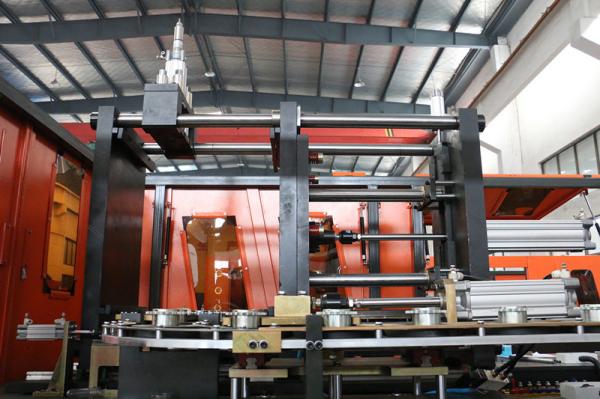

10L Automatic Bottle Blow Molding Machine , Plastic Bottle Manufacturing Machine
10L Automatic Bottle Blow Molding Machine , Plastic Bottle Manufacturing Machine
10L Automatic Bottle Blow Molding Machine , Plastic Bottle Manufacturing Machine
10L Automatic Bottle Blow Molding Machine , Plastic Bottle Manufacturing Machine
Specifications
Brand Name :
Eceng
Model Number :
YCQ-10L-1
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per Month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
1
PLC :
mitsubishi
material :
preform
cylinder :
SMC
Capacity :
500
color :
orange
Description

10L Fully Automatic bottle / bottles blowing machine prices (CE BV approved)

Product Description

Semi-automatic bottle-blowing machines can blow plastic bottles made of PET,PP,PE and PC. One drying tunnel is matched with two blowers,which is small in size,productive and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.

1. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

2. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

3. Introduce the FESTO air cylinder to avoid contamination and noise.

4. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

5. Strong clamping force with high pressure and double crank links to lock the mould.

6. Two ways of operating: automatic and manual.

7. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

8. Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.

9. Ideal cooling system make the finished bottles without any flaws.

10. Easy for you to install,test and start up.

11. Low rejection rate: less than 0.2 percent.

Item Unit YCQ-10L-1
Theoritical output Pcs/h 150-500
Container Material / PET/PP
Volume L 5.0-10
Max.hength mm 400
Max.diameter mm 200

Molding

 Number of cavites / 1-2
Max.mould plate dimension(L*H) mm 700*420
Max.mould thickness mm 260
Mould opening stroke mm 220

Electrical

 Voltage

220-380V/

50-60Hz
Toal power KW 21
Heating power KW 20

Machine

 Main body dimension(L*W*H) M 1.9*0.85*2.25
Main body weight KG 750
Conveyor dimension(L*W*H) M 1.8*0.6*1.4
Conveyor weight KG 350
